Gantry welding robot solution

Price on request Get a Quote →

The Gantry Welding Robot Solution offers precision and efficiency for high-volume welding applications, utilizing advanced technology to enhance productivity in manufacturing environments. Engineered for versatility, this solution can accommodate various workpieces and welding processes, ensuring consistent quality and repeatability. With its robust design and user-friendly interface, the Gantry Welding Robot Solution is an ideal investment for businesses seeking to optimize their operational capabilities and reduce labor costs.

  • CE / ISO 9001
  • 24-month warranty
  • FOB Qingdao
  • Remote & on-site support

Gantry Welding Robot: Overview

A gantry welding robot hangs a 6-axis welding robot from an overhead gantry, or mounts it on a column that travels along a floor rail. The gantry works as extra axes, so the robot reaches every seam on parts far larger than its own arm: trailer chassis, ship panels, bridge beams and large steel frames.

The stroke is built to your parts, for example 12 m × 4 m × 2 m, and beams of about 20 m can be welded in one pass along their length. Because the robot moves over a large area, one gantry can also serve several stations: it welds at one end while operators load the next part at the other.

12 × 4 × 2 mexample stroke, fully customizable
≈ 20 mbeam length welded along its full length
6 + gantry axesrobot plus gantry travel
MIG / MAG / TIGplus tandem twin-wire

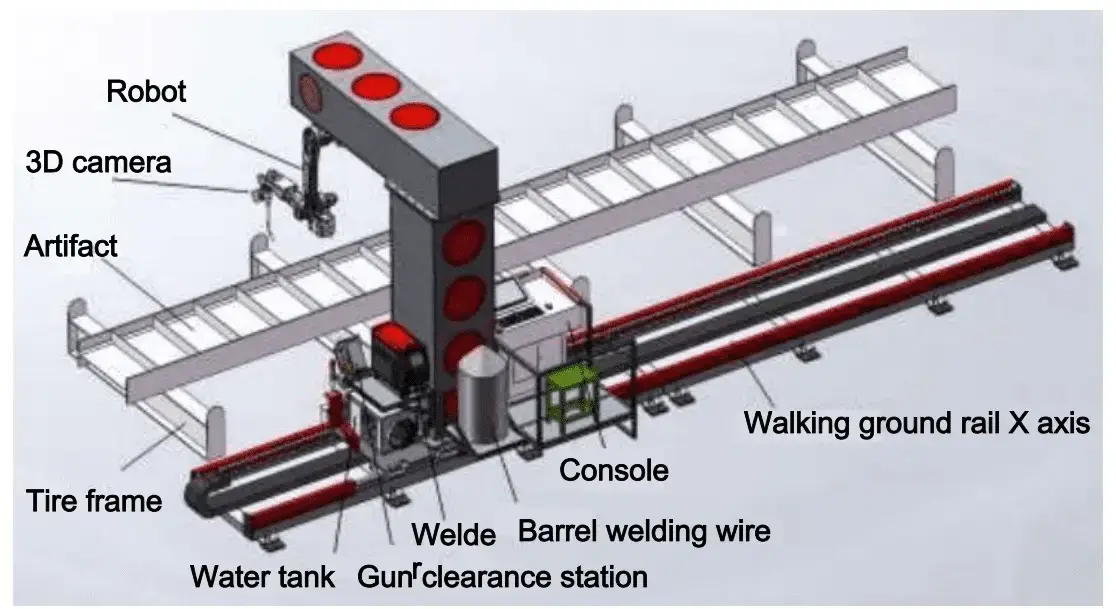

Gantry welding robot details
Welding robot mounted on the gantry.

Technical Specifications

Gantry welding robot – standard data
Frame configurationOverhead gantry or ground-rail column
Stroke (X / Y / Z)Fully customizable, for example 12 m × 4 m × 2 m
Robot6-axis welding robot; the gantry adds the travel axes
DrivePrecision rack and pinion with AC servo motors
Welding processesMIG / MAG / TIG / tandem twin-wire
Seam findingLaser seam tracking and arc sensing (options)
ProgrammingOffline programming or teaching-free path generation
Welding power sourceAotai, Megmeet, Panasonic, Lincoln Electric, Miller or others on request
Welding standardsProcedures can be qualified to ISO, AWS D1.1 and classification-society rules (ABS, LR, CCS)
CertificationCE, ISO 9001
Lead time20–45 days depending on configuration
Warranty24 months on the whole machine (consumables excluded)

Overhead Gantry or Ground-Rail Column?

LayoutHow it worksBest for
Overhead gantryThe robot hangs from a bridge that travels on two railsWide parts and multi-station layouts; keeps the floor clear around the part
Ground-rail columnThe robot sits on a column that travels on one floor railLong, narrower parts; lower building height needed

How a Gantry Station Runs

  1. Load the part. Set the part on the welding bed or fixture with the crane. With two stations, one part is loaded while the other is welded.
  2. Generate the program. Import the model for offline programming, or let the teaching-free system generate the paths, depending on the configuration.
  3. Find the real seam. Laser seam tracking and arc sensing correct the torch for fit-up variation and heat distortion.
  4. Weld long seams continuously. The gantry carries the robot along the full length of the part, so long seams are welded without stops and restarts.

Typical Workpieces and Industries

Workpieces

  • Truck and trailer chassis
  • Ship panels and ship sections
  • Bridge and structural beams
  • Construction-machinery components
  • Railway carriage frames
  • Storage tanks and pressure vessels

Why a gantry

  • Reach is set by the gantry, not by the robot arm
  • Several stations under one gantry raise arc-on time
  • Long seams welded in one continuous run
  • Floor around the part stays free for crane loading (overhead version)
  • Real-time seam tracking compensates for distortion

How It Compares with Other Welding Robots

SystemStrengthChoose it when
Cantilever welding robot CWR500AOpen front and back for crane loading; 3.5 m reachLong plate units, H-beams and box girders loaded by crane
Gantry welding robot (this machine)Covers a full rectangular area, e.g. 12 m × 4 mVery wide parts such as ship sections and trailer frames
Rail-mounted 7-axis welding robotCompact single-robot line with 3D scanningSteel-structure members of similar size
Mobile welding robotDrives to the workpiece; no rail neededParts too large or heavy to move to any station
Robot welding workstationPositioner turns the part to the best welding angleRepeat parts up to several tonnes in batches
Cobot welding stationHand-guided teaching, no fence after risk assessmentSmall, mixed parts and frequent changeovers

What Determines the Price of a Gantry Welding Robot

A gantry is built to your floor space and parts, so it is quoted per project. The main cost drivers:

Cost factorOptionsHow it affects the price
StrokeLength, width and height of the working areaThe steel structure and rails grow with the working area
Number of robotsPer projectEach robot adds an arm, power source and torch set
LayoutOverhead gantry or ground-rail columnOverhead gantries need more steel but keep the floor clear
ProcessSingle wire or tandem twin-wireTandem needs a second power source and twin torch
Seam finding and programmingLaser tracking, arc sensing, offline or teaching-freeSoftware and sensors decide how fast new parts can be welded
Welding power sourceAotai, Megmeet, Panasonic, Lincoln Electric, MillerImported brands cost more; local brands are easier to service in some regions
ServiceOn-site installation and trainingQuoted separately, usually about one week on site

For a quote, send drawings of your largest and most common parts, the plate thickness, the material and the floor space available. We quote FOB Qingdao.

Delivery, Installation and Support

  1. Configuration and drawings. Our engineers lay out the gantry, stroke and stations to fit your floor space and parts.
  2. Production and factory test. Lead time is 20–45 days depending on the configuration. The system is assembled and test-welded before shipment.
  3. Site preparation. Prepare the foundation for the rails, the electrical supply and shielding gas, and check the crane clearance above the gantry. Confirm the foundation requirements with our engineers before the machine arrives.
  4. Installation and training. On-site installation and operator training usually take about one week and are quoted separately. Operators learn programming, daily operation and routine maintenance.
  5. After-sales support. 24-month warranty on the whole machine, consumables excluded, with remote technical support for software and process questions.

Common Problems on Large Weldments and How the Gantry Handles Them

Large parts bring their own problems: long seams, heat distortion and slow loading. This is how the gantry station deals with them:

ProblemTypical causeHow the system handles it
Seam moves during weldingHeat distortion on long seamsLaser seam tracking and arc sensing correct the torch in real time
Fit-up varies from part to partCutting and assembly tolerances on large framesThe seam is located before welding instead of trusting the nominal model
Robot cannot reach deep or far seamsFixed robot base and limited arm reachThe gantry carries the robot along X, Y and Z over the whole working area
Robot waits while parts are loadedOne station onlyTwo or more stations under one gantry: weld one while loading the other
Stop-start marks on long weldsRe-positioning a fixed robotContinuous seams of about 20 m in one run

Before You Buy: A Gantry Planning Checklist

A gantry is built around your parts and your building. Collect this information first:

  • Dimensions and weight of the largest and the most common parts.
  • Crane capacity and hook height over the planned working area.
  • Available floor length, width and building height.
  • Floor condition and space for rail foundations.
  • Number of stations you want under the gantry.
  • Welding process: single wire or tandem twin-wire, and plate thicknesses.
  • Programming data: 3D models available for offline programming, or parts to be scanned.
  • Electrical supply, shielding gas and fume extraction.

Daily and Periodic Maintenance

IntervalTask
Every shiftClean the nozzle and remove spatter; check the contact tip and replace it when the bore is worn; check the wire feed and wire stock; confirm shielding-gas flow
WeeklyCheck torch cables and hoses for wear; check gas connections for leaks; clean the torch cleaning station or anti-spatter unit if fitted
MonthlyClean the rails and racks; lubricate the rack and pinion and guides; check the cable chains and the cables inside them
YearlyCheck rail alignment and fixing bolts; service the robot and gantry drives as specified by the manufacturers

Follow the robot and power-source manufacturers' manuals for reducer grease and battery replacement intervals. Back up robot programs and welding procedures after every change.

Safety Around a Gantry Station

  • Fence the working area and interlock the access gates with the robot controller.
  • Use light curtains or area scanners between a welding station and a loading station.
  • Coordinate crane movements with the gantry so that loads never pass over a moving robot.
  • Fit fume extraction sized for the welding process and the length of the working area.

Advantages and Limitations

Advantages

  • Welds parts far larger than any robot arm can reach
  • Multi-station layouts keep the robot welding while parts are loaded
  • Continuous long seams up to about 20 m
  • Overhead version keeps the floor free
  • Configurable for tandem twin-wire on thick plate

Limitations

  • Needs floor space, foundations and crane clearance
  • A fixed installation; for parts spread across a large shop a mobile welding robot may be more flexible
  • For small repeat parts a workstation with a positioner is faster and cheaper
  • Thin sheet parts are often better done with laser welding

Wire Size Reference for MAG Welding

Typical current windows for solid-wire MAG welding. The process library selects parameters automatically, but this table helps when you plan wire stock and plate thickness.

Wire ØShort-circuit (A)Globular (A)Spray (A)Typical plate
0.8 mm40–120120–170170–2000.8–4.0 mm
1.0 mm60–140140–190190–3002.0–8.0 mm
1.2 mm80–180180–240240–400from about 4 mm
1.6 mm130–220220–280280–500from about 8 mm

Short-circuit transfer runs at about 14–22 V, globular transfer at about 22–26 V (the spatter zone to avoid), and spray transfer above 26 V.

Gantry Welding Robot FAQ

What is the maximum workpiece size?

The stroke is built to your parts. A typical working area is 12 m × 4 m × 2 m, and beams of about 20 m are welded along their full length. Larger strokes are possible.

Should I choose an overhead gantry or a ground-rail column?

An overhead gantry suits wide parts and multi-station layouts and keeps the floor clear. A ground-rail column suits long, narrower parts and needs less building height.

Can one gantry serve several stations?

Yes. The robot welds at one station while operators load or unload the next one, which raises arc-on time.

How is the robot programmed?

By offline programming from the part model, or with teaching-free path generation, depending on the configuration.

How does it handle distortion and fit-up gaps?

Laser seam tracking and arc sensing correct the torch position in real time while welding.

Can the welds meet AWS D1.1 or classification-society requirements?

Welding procedures can be qualified to ISO, AWS D1.1 and classification-society rules such as ABS, LR and CCS, for your specific joints and materials.

Does a gantry welding robot need a foundation?

Yes. The rails need a level, stable foundation. Confirm the foundation requirements with our engineers before the machine arrives.

How long does it take from order to production?

Lead time is 20–45 days depending on the configuration, plus about one week for on-site installation and training. Foundation work should be finished before delivery.

Which drive system moves the gantry?

A precision rack and pinion with AC servo motors.

See all welding robots to compare cantilever, gantry, mobile, workstation and cobot systems side by side.

Send us your part drawings and floor plan. Our engineers will propose the gantry layout, stroke and process, and quote FOB Qingdao.

Get a configuration and quote

Welding Robot ROI Calculator

Estimate the payback period with your own numbers. Nothing is sent anywhere; the result updates as you type.

Monthly saving–
Payback period–
Net gain after 3 years–
Get a quote for your parts →

Estimate only. It does not include higher output, less rework or financing costs, which usually shorten the payback further. Ask us for a calculation based on your parts.
