robot welding workstation

Price range: USD 18,000 – 30,000 (depending on configuration · FOB Qingdao)

Maximize your production throughput with PCL’s high-precision robotic welding integration.

  • Turnkey Integration: Fully synchronized multi-axis systems including robots, positioners, and power sources.
  • Superior Consistency: Achieve flawless weld beads 24/7, eliminating human error and rework.
  • High Versatility: Modular workstations designed for everything from small automotive parts to heavy structural steel.

* Custom workstation layouts and cycle-time simulations available upon request.

  • CE / ISO 9001
  • 24-month warranty
  • FOB Qingdao
  • Remote & on-site support
Category:

Robot Welding Workstation: Overview

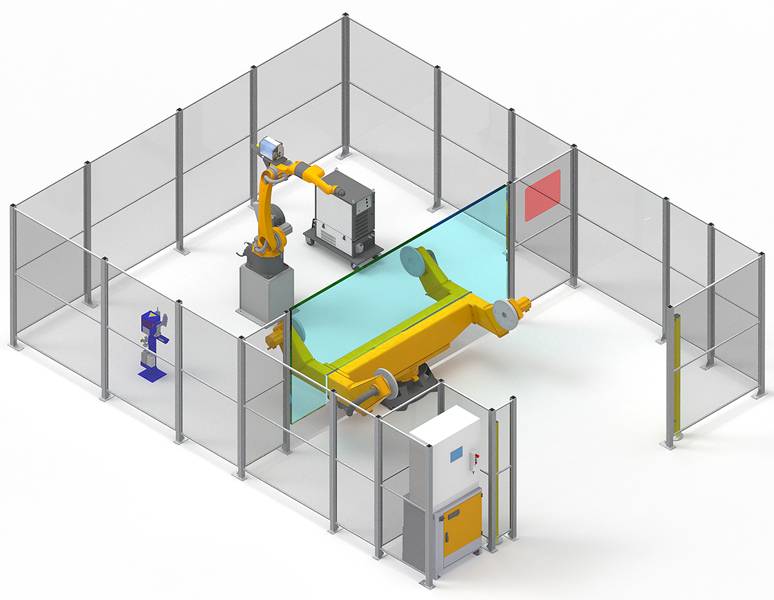

A robot welding workstation combines a 6-axis welding robot with a positioner that turns the part, so every seam is welded in the best position, usually flat or horizontal. It is the standard choice for repeat parts, from small automotive brackets to heavy structural assemblies of several tonnes.

The positioner is synchronized with the robot controller, so the part rotates while the robot welds. Round seams are welded in one continuous pass, and multi-side parts are welded without re-clamping.

500–5000 kg+positioner capacity
3 typessingle-axis, L-type, C-type positioners
RV reducersin the positioner drive
USD 18,000–30,000typical price range, FOB Qingdao

Robot Welding Workstation in Action

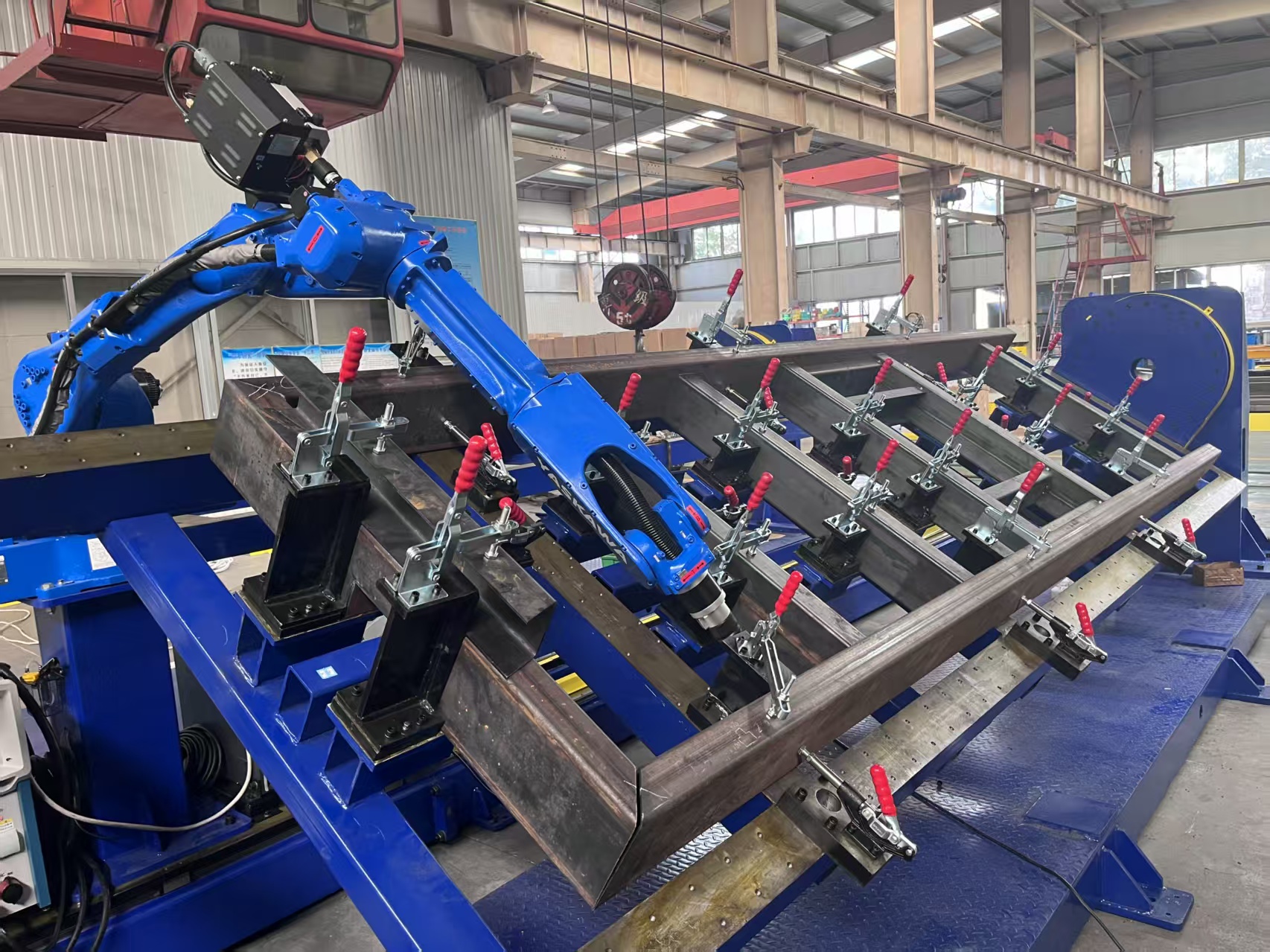

The positioner turns the part while the robot welds.

Technical Specifications

Robot welding workstation – standard data
Robot6-axis welding robot
Positioner typesSingle-axis, L-type (two-axis) or C-type
Positioner capacity500–5000 kg and above
Positioner driveRV reducers, synchronized with the robot controller
Ground railOptional, for longer parts
ProgrammingOffline programming or teaching-free, depending on the application
Seam findingLaser seam tracking or arc tracking (options)
Welding processesMIG / MAG / TIG; solid and flux-cored wire
Welding power sourceAotai, Megmeet, Panasonic, Lincoln Electric, Miller or others on request
Welding standardsProcedures can be qualified to ISO, AWS D1.1 and classification-society rules (ABS, LR, CCS)
CertificationCE, ISO 9001
Lead time20–45 days depending on configuration
Warranty24 months on the whole machine (consumables excluded)

Choosing the Positioner

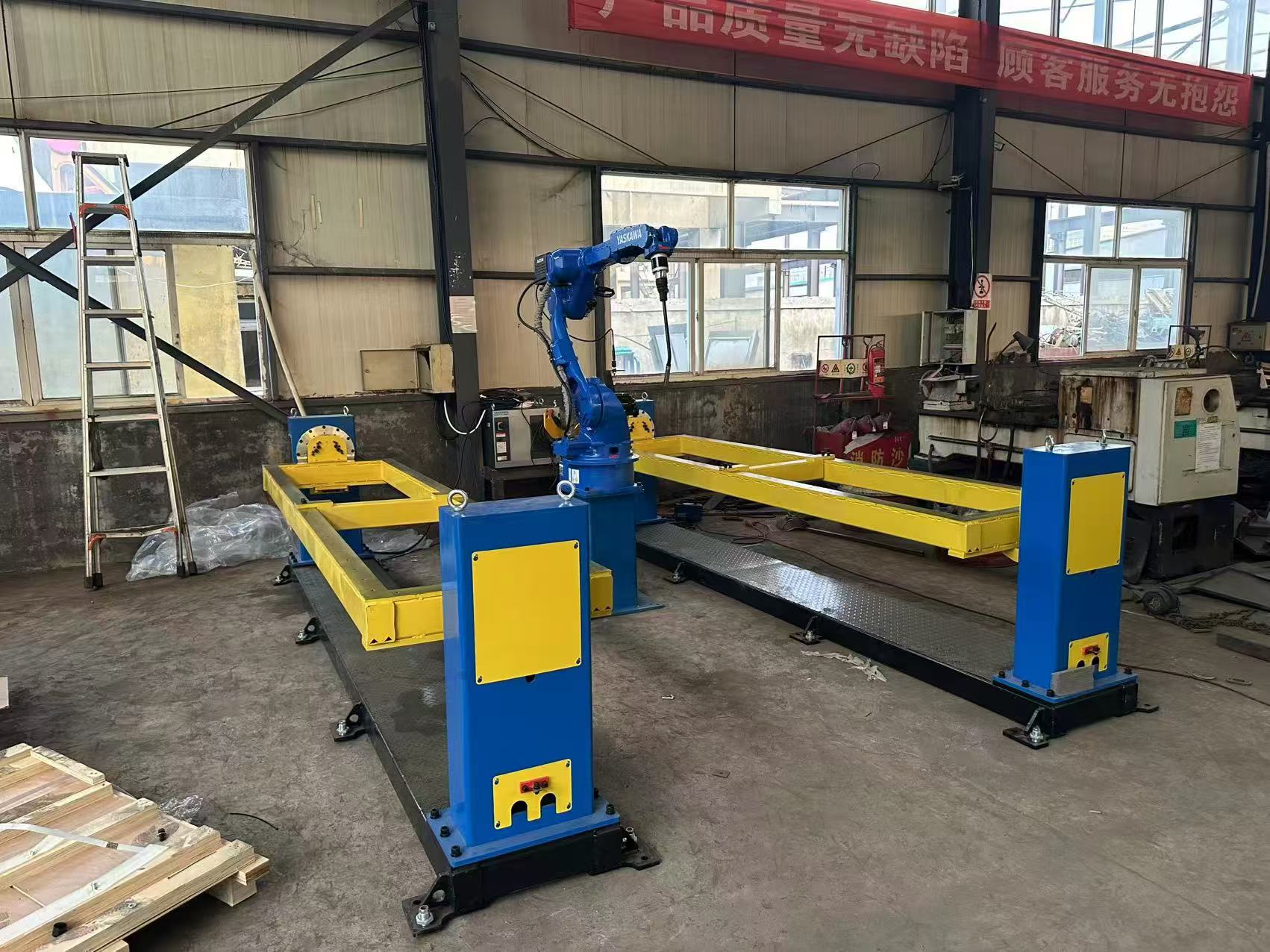

External-axis positioners for robot welding workstation: single-axis, L-type and C-type
External-axis positioners matched to different workpiece structures.
TypeMovementTypical parts
Single-axisTurns the part around one horizontal axisLong parts such as beams, frames and shafts
L-type (two-axis)Tilts and rotates the partBoxes, brackets and parts with seams on several faces
C-typeRotates the part inside a C-shaped frameParts that need full access around their length, such as frames and booms

How a Workstation Runs

  1. Clamp the part in a fixture. Repeat parts use a fixture on the positioner, so every part sits in the same place.
  2. Program once. Create the program offline from the model, or with the teaching-free function where the application allows.
  3. Weld in the best position. The positioner turns the part so the robot welds flat or horizontal, which gives better penetration and bead shape.
  4. Repeat. For every following part the operator only loads, clamps and starts the cycle.

Typical Workpieces and Industries

Workpieces

  • Automotive brackets and small assemblies
  • Construction-machinery booms and frames
  • Agricultural machinery parts
  • Structural steel assemblies up to several tonnes
  • Shafts, pipes and round parts

Why a workstation

  • Best welding position for every seam
  • Continuous circumferential welds
  • Fast cycle on repeat parts
  • Fixtures keep part position consistent
  • Compact footprint compared with gantry systems

How It Compares with Other Welding Robots

SystemStrengthChoose it when
Cantilever welding robot CWR500AOpen front and back for crane loading; 3.5 m reachLong plate units, H-beams and box girders loaded by crane
Gantry welding robotCovers a full rectangular area, e.g. 12 m × 4 mVery wide parts such as ship sections and trailer frames
Rail-mounted 7-axis welding robotCompact single-robot line with 3D scanningSteel-structure members of similar size
Mobile welding robotDrives to the workpiece; no rail neededParts too large or heavy to move to any station
Robot welding workstation (this machine)Positioner turns the part to the best welding angleRepeat parts up to several tonnes in batches
Cobot welding stationHand-guided teaching, no fence after risk assessmentSmall, mixed parts and frequent changeovers

What Determines the Price of a Robot Welding Workstation

Most workstations fall in the USD 18,000–30,000 range (FOB Qingdao). Where a configuration sits depends on:

Cost factorOptionsHow it affects the price
PositionerSingle-axis, L-type or C-type; 500–5000 kg+Higher capacity and more axes cost more
Ground railWith or withoutExtends reach for longer parts
Seam findingLaser seam tracking, arc trackingNeeded when fit-up varies
ProgrammingOffline or teaching-freeTeaching-free reduces programming time on new parts
Welding power sourceAotai, Megmeet, Panasonic, Lincoln Electric, MillerImported brands cost more; local brands are easier to service in some regions
FixturesPer part familyDesigned to your parts; quoted separately
ServiceOn-site installation and trainingQuoted separately, usually about one week on site

For a quote, send drawings or photos of your parts, their weight, the material and the expected annual quantity.

Delivery, Installation and Support

  1. Configuration and drawings. Our engineers choose the positioner, fixtures and process from your parts.
  2. Production and factory test. Lead time is 20–45 days depending on the configuration. The system is assembled and test-welded before shipment.
  3. Site preparation. Prepare a level floor, the electrical supply and shielding gas, and plan the safety fencing around the cell.
  4. Installation and training. On-site installation and operator training usually take about one week and are quoted separately. Operators learn programming, daily operation and routine maintenance.
  5. After-sales support. 24-month warranty on the whole machine, consumables excluded, with remote technical support for software and process questions.

Fixture Design Tips

In a workstation, the fixture decides weld quality as much as the robot does. Good fixtures follow a few rules:

  • Locate every part on the same datum features that the drawing uses.
  • Keep clamps out of the torch path and away from the arc.
  • Make loading quick and foolproof, so a part can only go in one way.
  • Design for consistent fit-up gaps; the robot repeats exactly what the fixture gives it.
  • Allow access for the torch at the best welding angle after the positioner turns.

Common Problems and How the Workstation Handles Them

Repeat-part welding is where a workstation shines, but only if these points are handled:

ProblemTypical causeHow the system handles it
Weld position is never idealPart is fixed on a flat tableThe positioner turns the part so seams are welded flat or horizontal
Fit-up varies between batchesUpstream cutting and bending tolerancesFixtures fix the position; laser seam tracking or arc tracking corrects the rest
Round seams show start-stop marksRe-positioning by handThe positioner rotates in sync with the robot for one continuous weld
Positioner struggles with a heavy partCentre of gravity far from the rotation axisCapacity is selected for both weight and centre-of-gravity offset
Robot waits during loadingSingle-station layoutA two-station layout lets one part be loaded while the other is welded

Before You Buy: A Workstation Checklist

These answers decide the positioner, fixture and layout:

  • Part drawings, weight and centre of gravity.
  • Annual quantity and batch sizes.
  • Target cycle time per part.
  • Seams that need the part turned: round, multi-face or vertical-up seams.
  • Whether one or two stations are needed.
  • Available floor space for the fenced cell.
  • Electrical supply, shielding gas and fume extraction.

Daily and Periodic Maintenance

IntervalTask
Every shiftClean the nozzle and remove spatter; check the contact tip and replace it when the bore is worn; check the wire feed and wire stock; confirm shielding-gas flow
WeeklyCheck torch cables and hoses for wear; check gas connections for leaks; clean the torch cleaning station or anti-spatter unit if fitted
MonthlyClean spatter from fixtures and locating pins; check the positioner ground connection; check clamp wear
YearlyService the positioner reducers and the robot as specified by the manufacturers

Follow the robot and power-source manufacturers' manuals for reducer grease and battery replacement intervals. Back up robot programs and welding procedures after every change.

Safety

  • Enclose the cell with fencing and interlock the doors with the robot controller.
  • Use light curtains at the loading side if operators load while the robot welds at the other station.
  • Protect operators from arc light with screens at the loading area.
  • Fit fume extraction above or behind the positioner.

Typical Cell Layouts

LayoutHow it worksBest for
Single positionerOne positioner in front of the robot; load, weld, unloadLong weld times per part or low volumes
Two stationsTwo positioners or tables; the robot welds at one while the other is loadedRepeat parts where loading takes a large share of the cycle
Positioner with ground railThe robot travels on an optional ground rail to reach longer partsLong frames and booms that exceed the robot reach

Advantages and Limitations

Advantages

  • Every seam in the best welding position
  • Fastest cycle for repeat parts
  • Handles parts from small brackets to several tonnes
  • Within the typical price range of USD 18,000–30,000

Limitations

Wire Size Reference for MAG Welding

Typical current windows for solid-wire MAG welding. The process library selects parameters automatically, but this table helps when you plan wire stock and plate thickness.

Wire ØShort-circuit (A)Globular (A)Spray (A)Typical plate
0.8 mm40–120120–170170–2000.8–4.0 mm
1.0 mm60–140140–190190–3002.0–8.0 mm
1.2 mm80–180180–240240–400from about 4 mm
1.6 mm130–220220–280280–500from about 8 mm

Short-circuit transfer runs at about 14–22 V, globular transfer at about 22–26 V (the spatter zone to avoid), and spray transfer above 26 V.

Robot Welding Workstation FAQ

Which positioner do I need?

Single-axis positioners suit long parts such as beams and shafts; L-type positioners suit boxes and multi-face parts; C-type positioners give full access around frames and booms. Capacity ranges from 500 kg to over 5000 kg.

Does the positioner move while the robot welds?

Yes. The positioner is synchronized with the robot controller, so circumferential and curved seams are welded in one continuous pass.

How much does a robot welding workstation cost?

Most configurations are between USD 18,000 and 30,000, FOB Qingdao, depending on the positioner, rail and seam-finding options.

Is it suitable for small batches?

It is best for repeat parts. For very small batches with frequent changes, a cobot welding station is quicker to program.

Can the welds meet AWS D1.1 requirements?

Welding procedures can be qualified to ISO, AWS D1.1 and classification-society rules such as ABS, LR and CCS, for your specific joints and materials.

What is the lead time?

Lead time is 20–45 days depending on the configuration. Installation and training take about one week on site and are quoted separately.

Do I need a two-station layout?

A two-station layout lets operators load one part while the robot welds the other, which keeps the robot welding. It needs more floor space and a second positioner or table; we recommend it when loading takes a large share of the cycle.

How is the positioner capacity chosen?

By the part weight and by how far its centre of gravity sits from the rotation axis. A heavy part with a large offset needs more turning torque than its weight alone suggests.

See all welding robots to compare cantilever, gantry, mobile, workstation and cobot systems side by side.

Send us drawings or photos of your parts. We will recommend the positioner and fixture concept, and quote FOB Qingdao.

Get a configuration and quote

Welding Robot ROI Calculator

Estimate the payback period with your own numbers. Nothing is sent anywhere; the result updates as you type.

Monthly saving–
Payback period–
Net gain after 3 years–
Get a quote for your parts →

Estimate only. It does not include higher output, less rework or financing costs, which usually shorten the payback further. Ask us for a calculation based on your parts.
