Pipe Plasma Cutting Machine: Overview
The PCL pipe plasma cutter cuts round pipe from Ø50 to 1500 mm (up to 2000 mm custom) with walls from 1 to 30 mm. Multi-axis motion handles saddle cuts and intersection holes, and automatic height control keeps the torch distance on uneven pipe surfaces.

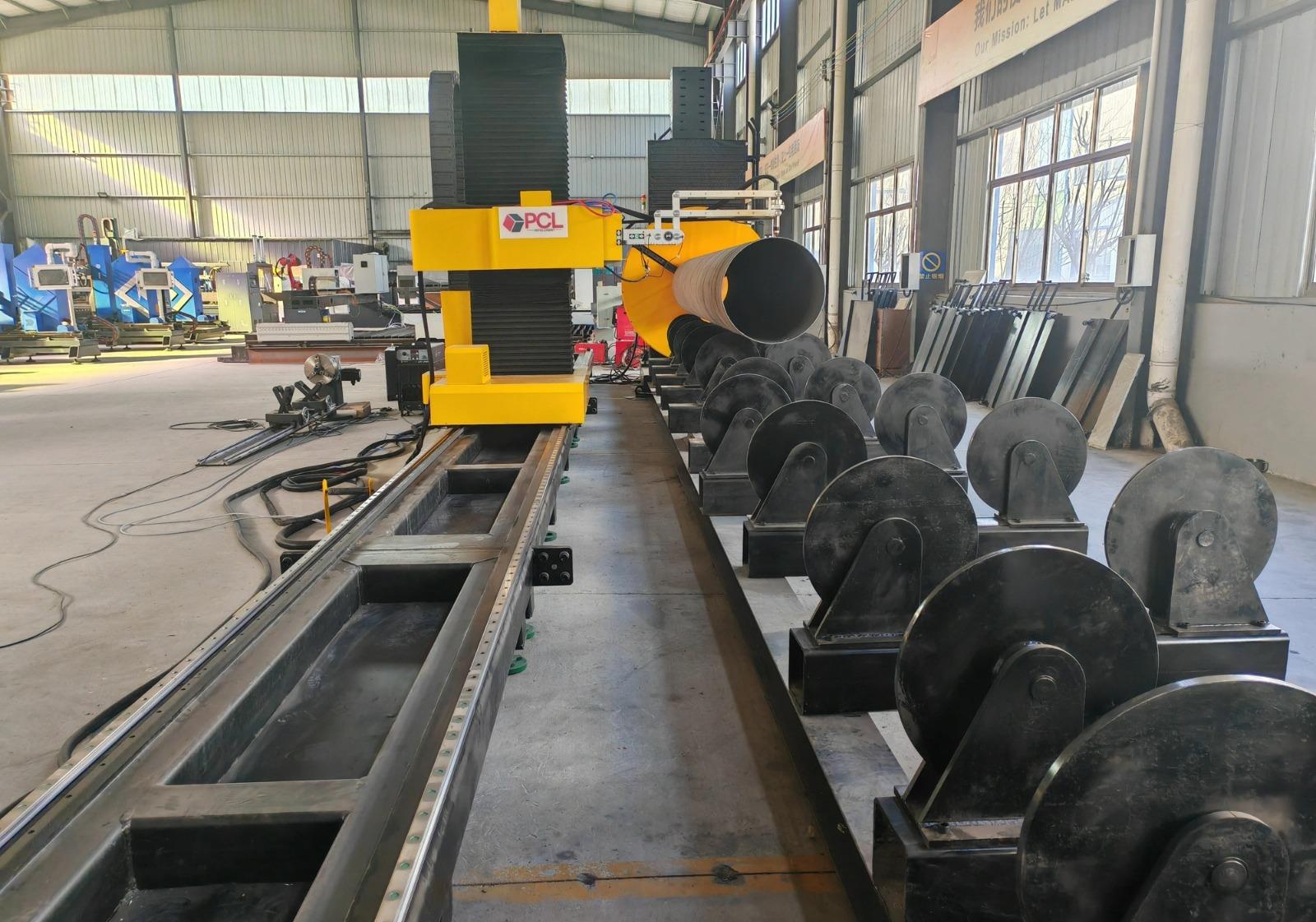

Pipe Cutting at a Customer Site
The pipe plasma cutter processing heavy industrial piping at a customer site.
Technical Specifications
| Pipe diameter | Ø50–1500 mm (up to 2000 mm custom) |
|---|---|
| Wall thickness | 1–30 mm, depending on plasma source |
| Pipe length | 6 m / 12 m standard, extendable |
| Control | Multi-axis CNC with 3D visual interface |
| Height control | Automatic torch height control |
| Materials | Carbon steel, stainless steel, aluminium |
| Certification | CE, ISO 9001 |
| Warranty | 24 months on the whole machine (consumables excluded) |
Typical Cuts
- Square and bevelled pipe ends.
- Saddle (fish-mouth) cuts for branch connections.
- Intersection holes for branch pipes.
- Segment cuts for mitred bends.
Pipe Plasma or Tube Laser
A tube laser is more accurate on thin and medium walls up to Ø360 mm. The pipe plasma cutter covers much larger diameters and thick walls at lower investment, which suits piping, pressure vessels and structural pipe work. Cut-edge quality is commonly specified with ISO 9013 (perpendicularity and roughness classes). If your drawings call for a class, tell us and we check it on sample cuts.
Where It Sits in the PCL Plasma Range
| Machine | Built for | Price (FOB Qingdao) |
|---|---|---|
| Portable plasma cutter | Hand or guided cutting, 12–25 mm | USD 1,200 |
| P3015 desk plasma | Sheet and plate on a compact integrated table | USD 2,000–15,000 |
| Gantry plasma | Large plates; plasma and optional flame | USD 2,000–15,000 |
| 5-axis bevel plasma | V, X, Y and K weld-prep bevels | USD 35,000–60,000 |
| Pipe plasma (this machine) | Round pipe Ø50–1500 mm, saddle cuts | On request |
| 8-axis profile plasma | Tubes, channels, H- and I-beams with bevels | USD 45,000–80,000 |
Pipe Plasma FAQ
What pipe sizes can it cut?
Round pipe from Ø50 to 1500 mm, up to 2000 mm as a custom build.
How thick can the walls be?
1–30 mm, depending on the plasma source.
Can it cut saddle joints?
Yes. Multi-axis motion cuts saddle shapes and intersection holes.
How long can the pipes be?
6 m or 12 m as standard; longer beds on request.
Compare all plasma cutting machines side by side in our selection guide.
Send your pipe range and joint types. We configure the machine and quote.
