HF Series: High-Performance ALL-IN-ONE H beam cutting machine

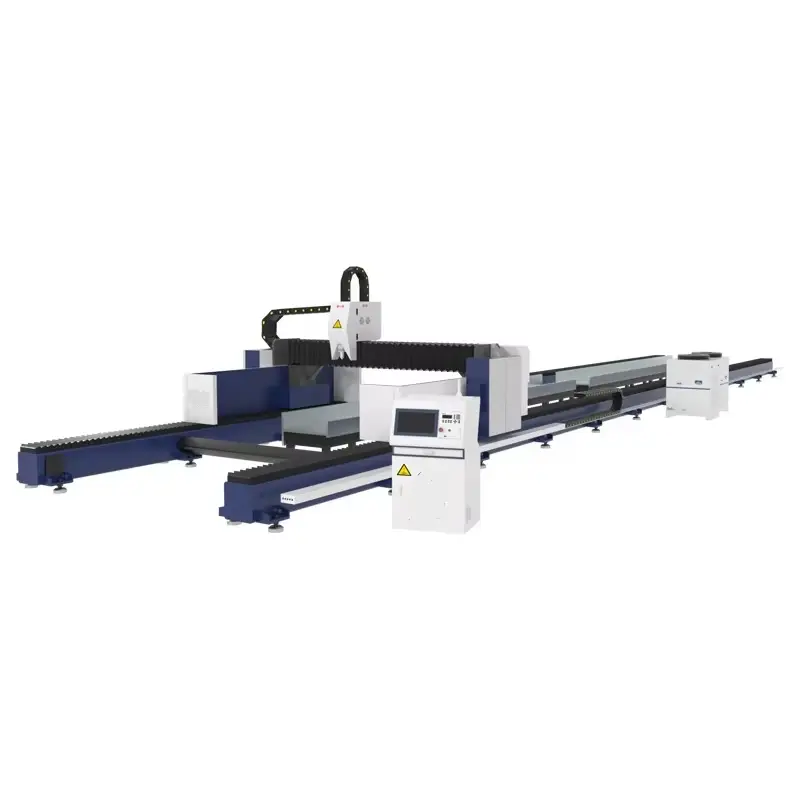

The HF 30120 is a specialized 5-axis robotic laser solution designed for dual-stream fabrication. This integrated platform offers a massive 26,000mm bed for extra-large sheet metal, while the high-precision 5-axis head handles structural H-beams with exceptional beveling accuracy.
5-Axis Beveling
Utilizing a precision 5-axis linkage system, the HF series supports spatial 3D cutting and ±45° beveling for complex structural joints.
Dual-Function Bed
Seamlessly switch between H-beams and oversized plates. The long-travel gantry ensures stability across the entire 12,000mm length or longer
Integrated Workflow
High-speed Marking and Punching are handled in one pass, eliminating precision errors from moving materials between stations.
Advanced 5-Axis Control Logic
The HF 30120 features a specialized 5-axis controller that compensates for beam warping in real-time. This is critical for maintaining consistent focal depth during Cope Cuts and Flange Notching.
- Dynamic Focal Adjustment: Constant laser intensity on varying thicknesses.
- Optional Tube Module: Add a rotary chuck for round/square tubes on the same platform.
- Collision Protection: High-sensitivity sensors protect the cutting head during 3D moves.
Technical Highlight
The 5-axis robotic head significantly reduces the heat-affected zone (HAZ), preserving the mechanical integrity of structural steel better than plasma methods.

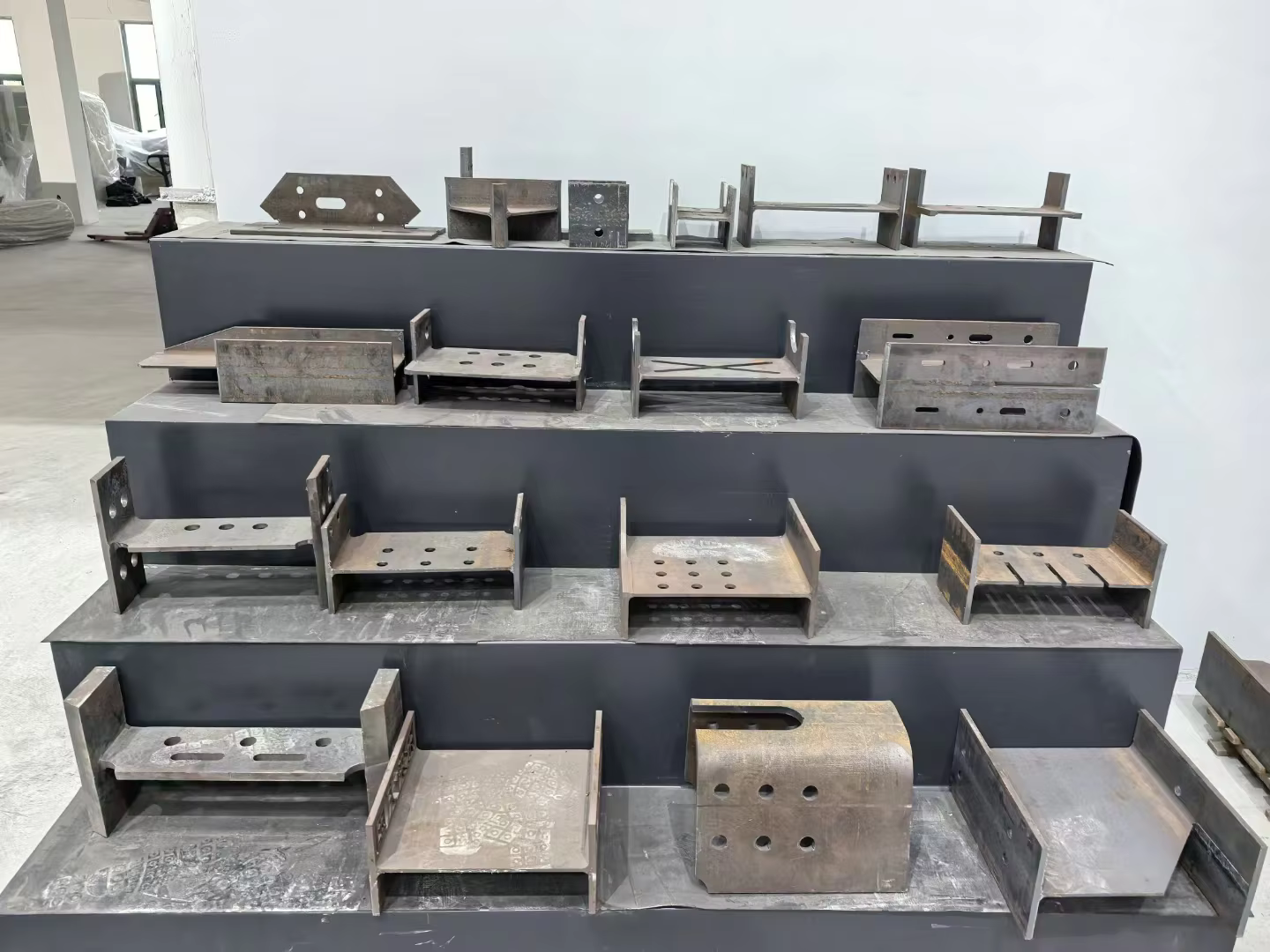

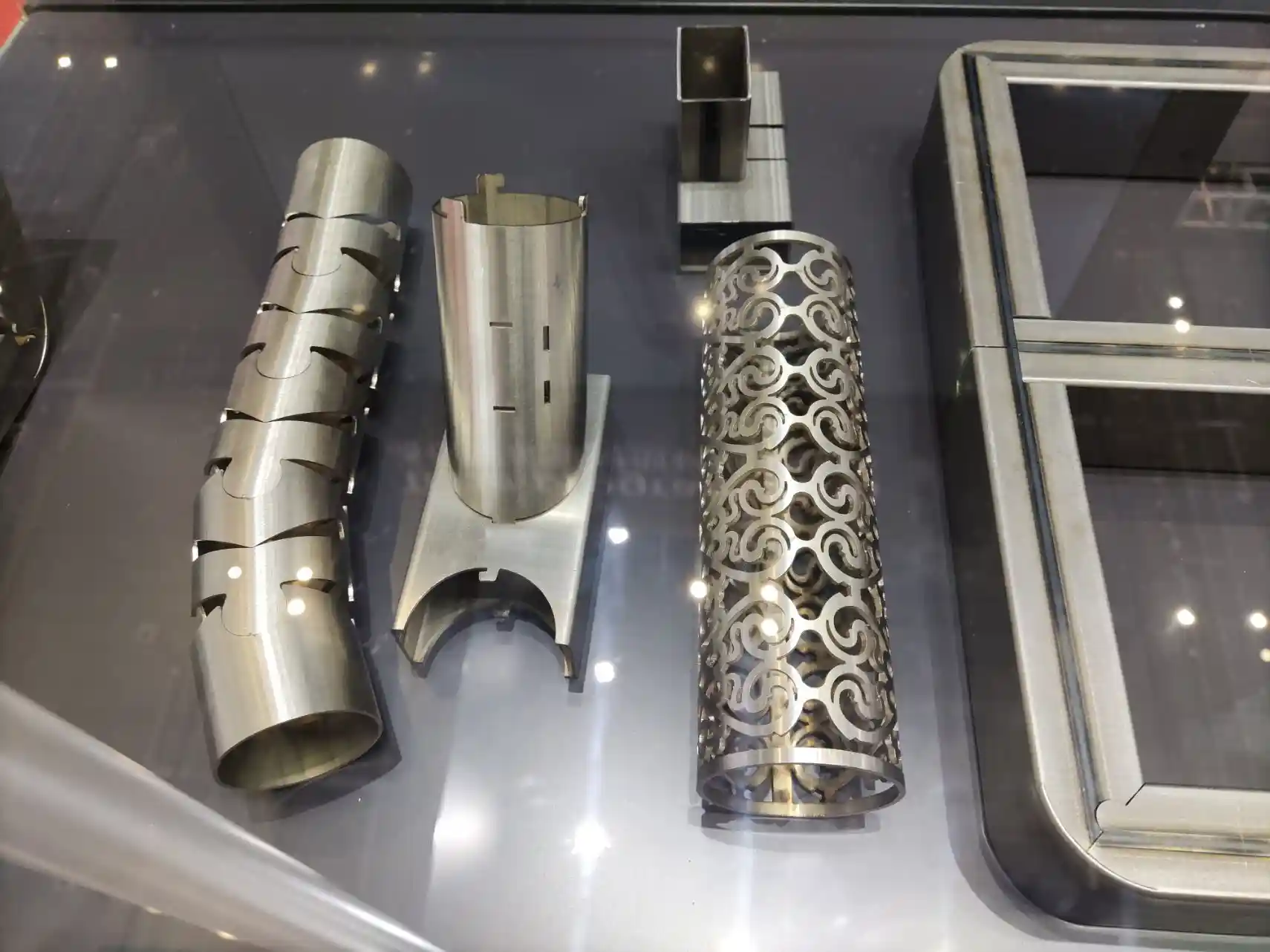

Precision Processing Samples

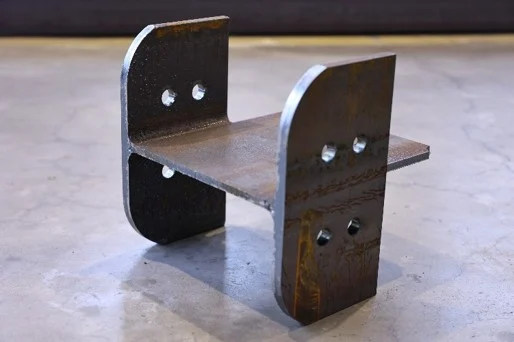

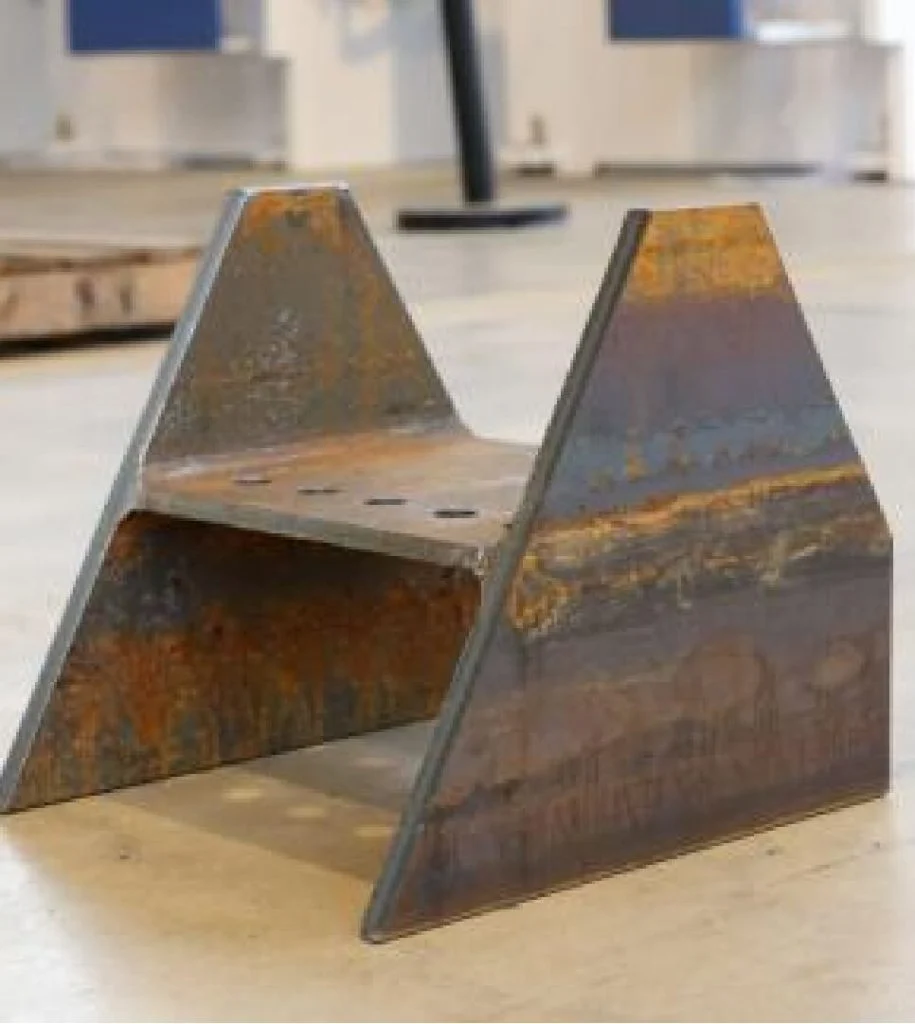

High-definition beveling and bolt holes processed on the HF 5-axis line.
Technical Specifications
| Parameter | HF 30120 Specifications |
|---|---|
| Cutting Range (H Beam) | 1250mm × 600mm |
| Cutting Range (Sheet Metal) | 2500mm width |
| Bevel Cut Angle (5-Axis) | ±45° |
| X, Y Axis Accuracy | ±0.08mm |
| Repeat Positioning Accuracy | ±0.08mm |
| Robotic Axis Accuracy | ±0.1° |
| Max. Positioning Speed | 40m/min |
Global Door-to-Door Service
Full turnkey support: Logistics, Customs, On-site Installation, and Expert Training.
