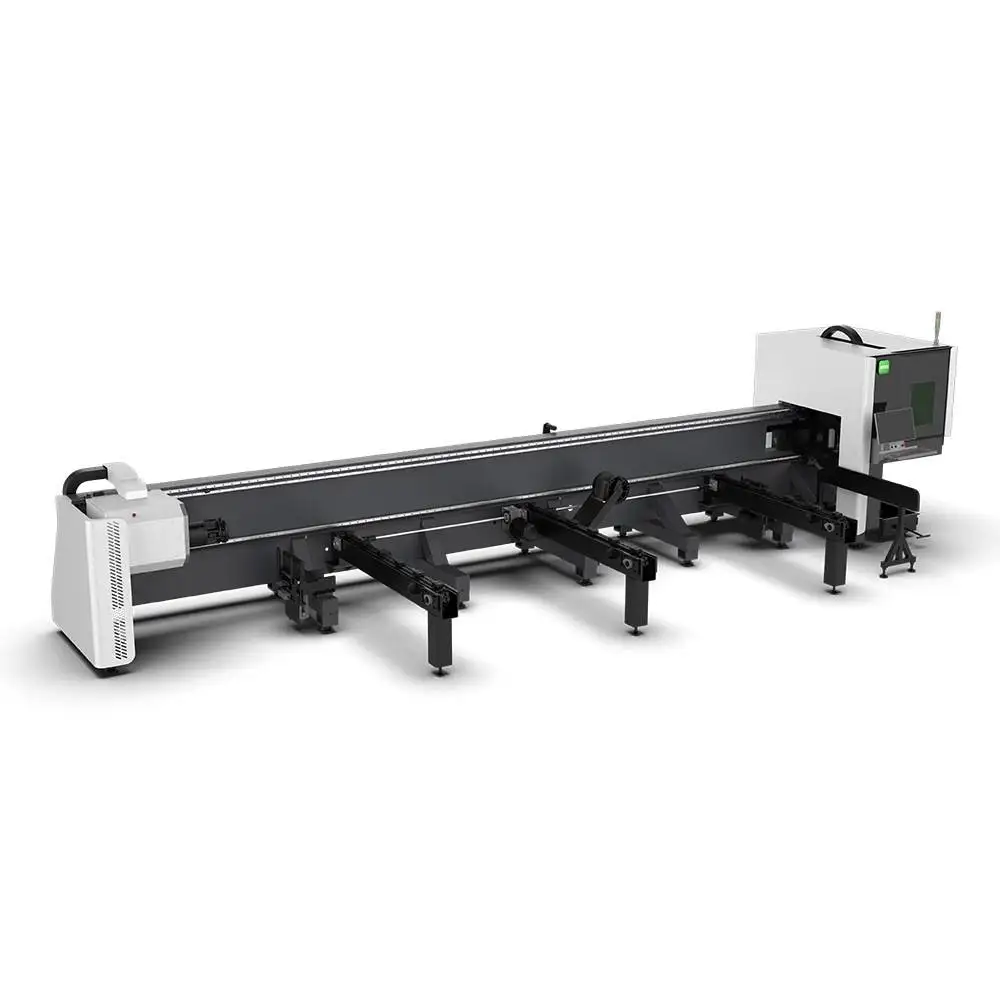

LT120S Side-Mounted High-Speed Tube Laser Machine
Precision Side-Loading System & Zero-Tailings Technology for Small to Medium Pipes
Why Choose LT120S Side-Mounted Architecture?
The LT120S utilizes a unique side-mounted bed design, specifically engineered for fabricators who handle heavy-walled pipes (up to 10mm) but require the speed of a compact machine.
- ✓
Rapid Loading Speed: The open-side structure allows for direct forklift access. This eliminates the need for complex end-loading, making it 40% faster to load 160kg+ heavy tubes. - ✓
Maintenance-Free Precision: Unlike horizontal beds, cutting slag and sparks fall vertically to the floor. Your guide rails and racks stay clean, drastically reducing wear and ensuring ±0.03mm accuracy over time. - ✓
Superior Space Efficiency: The compact side-mount footprint is ideal for workshops looking to maximize production capacity without expanding their floor area.
Zero-Tailings & High-Precision Clamping
Maximize material ROI with the LT120S dual-chuck synchronization system, designed to minimize waste and handle high-inertia rotations.
Ultra-Short Tailings
Our synchronized dual-chuck system pushes the cutting head to its physical limit, significantly reducing scrap on every pipe.
Pneumatic Precision
Equipped with full-stroke pneumatic chucks that provide constant, high-pressure clamping—essential for spinning 160kg pipes without slippage.
Technical Specifications
| Model Parameter | LT120S (Standard / Side-Mount) |
| Max Pipe Diameter | Round: φ120mm | Square: □120*120mm |
| Wall Thickness Capability | Carbon Steel up to 10mm |
| Laser Source | 1.5kW – 3.0kW Fiber |
| Positioning Accuracy | ±0.03 mm |
| Max Pipe Weight | 180 kg (Single Pipe) |
Looking for Heavy-Duty Performance?
The LT120S is the perfect blend of speed and power. Contact us for a specialized quote today.
