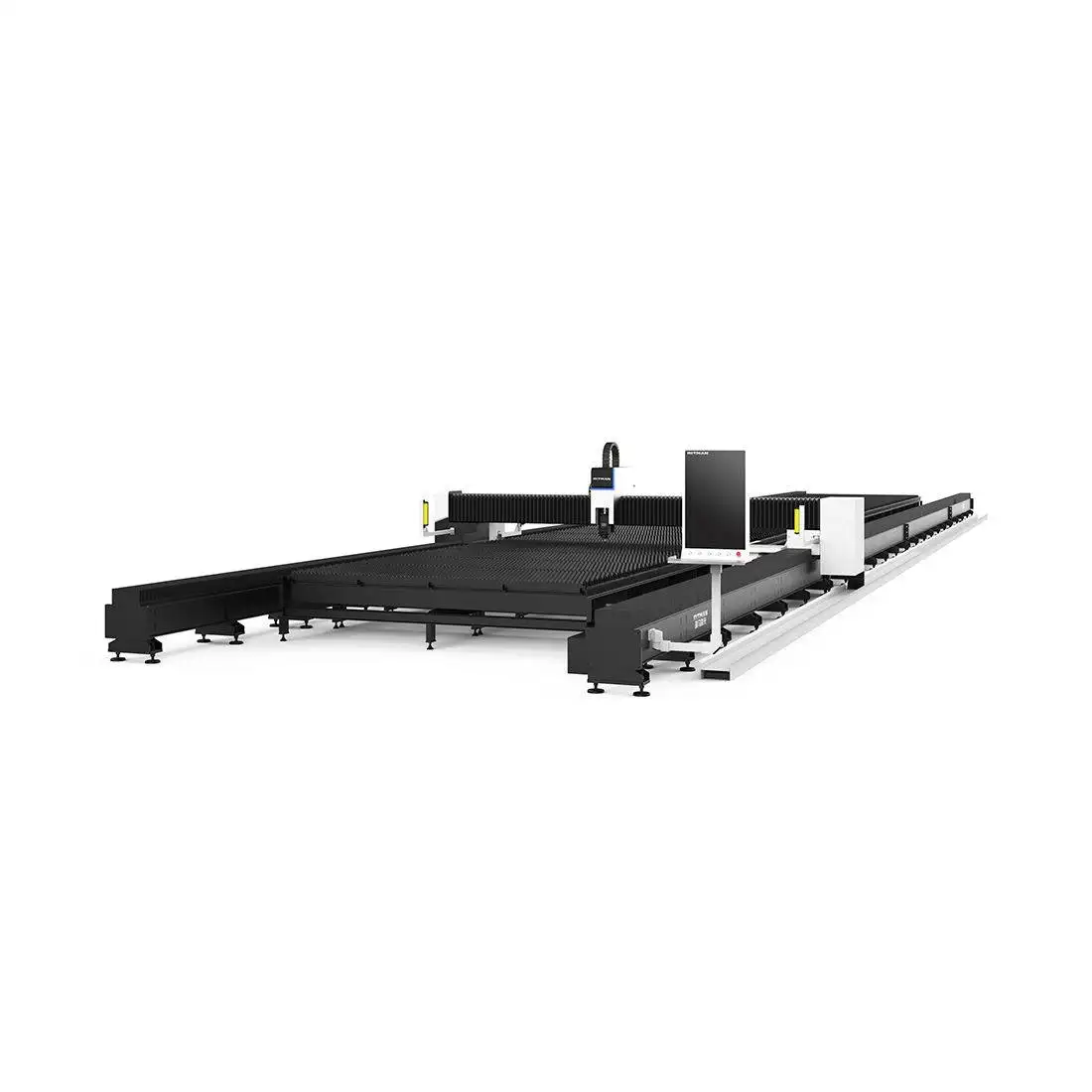

Mesin pemotong laser GF

Julat harga: USD 7,000 – 50,000 (bergantung pada konfigurasi · FOB Qingdao)

Rekaan Padat: Dioptimumkan untuk pemprosesan helaian saiz sederhana (format 3012).
Gantri Aluminium Penerbangan: Ketegaran tinggi dengan pecutan maksimum.
Kawalan Cypcut: Perisian CNC terkemuka industri untuk penyusunan pintar (nesting).
Sokongan Global: Waranti 2 tahun dan bantuan teknikal jarak jauh.

CE / ISO 9001
24-month warranty
FOB Qingdao
Remote & on-site support

Category: Pemotong Laser Tags: Automatik, Mesin pemotong laser keluli, Pemotongan laser logam format besar

Description

Pemetik Laser Gentian Ketepatan Tinggi GF3012

Direka untuk kepingan logam 3000mm x 1200mm | Ketepatan Kedudukan: ±0.03mm

Pemprosesan Kepingan Logam Berkelajuan Tinggi & Ketepatan Tinggi

Pemotong Laser Gentian GF3012 direka khas untuk perniagaan yang memerlukan ketepatan tinggi pada kepingan logam format sederhana. Dengan kawasan kerja 3000mm x 1200mm, ia mengimbangi kecekapan ruang lantai dengan output gred industri. Sama ada anda memproses keluli tahan karat (stainless steel), keluli karbon, atau bahan pantulan tinggi seperti loyang (brass) dan aluminium, GF3012 menghasilkan bahagian yang bersih tanpa burr dan sedia untuk digunakan.

Kepala Laser Auto-Fokus Pintar

Dilengkapi dengan kepala pemotongan auto-fokus pintar, GF3012 secara automatik melaraskan kedudukan fokus semasa proses tusukan (piercing) dan pemotongan. Ini meningkatkan kelajuan tusukan dengan ketara dan memastikan kualiti pemotongan yang konsisten walaupun pada kepingan logam yang tidak rata, mengurangkan pembaziran bahan dan meningkatkan kecekapan sebanyak 30%.

Mesin pemotong laser GF

Kepala Pemotongan Ketepatan dengan Teknologi Penderiaan Pintar

Gantri Aluminium Gred Penerbangan

Gantri Aluminium Gred Penerbangan untuk Prestasi Dinamik Tinggi

Gantri Aluminium Gred Penerbangan

Rasuk silang dihasilkan mengikut piawaian aeroangkasa dan dibentuk melalui pengacuan penyemperitan akhbar 4300 tan. Struktur ringan namun sangat tegar ini membolehkan pecutan 1.2G, memastikan operasi stabil berkelajuan tinggi tanpa sebarang deformasi struktur, walaupun semasa kitaran pengeluaran yang paling menuntut.

Dioptimumkan untuk Pelbagai Aplikasi Logam

Pemotongan

pemotongan serong

pengerudian

Spesifikasi Teknikal

Model	mesin pemotong laser gentian GF3012
Kawasan Kerja (P*L)	3000mm x 1200mm
Julat Kuasa Laser	1000W / 1500W / 2000W / 3000W
Kedudukan Paksi X/Y	±0.03mm
Maks. Kelajuan Pautan	100m/min
Format Disokong	AI, BMP, PLT, DXF, DST, dll.

Komponen Perkakasan Utama

Kepala Laser Fokus Auto

Dilengkapi dengan kepala pemotong Raytools atau WSX untuk pelarasan panjang fokus automatik berdasarkan ketebalan bahan.

Sistem Pemacu Berkualiti Tinggi

Motor servo Japan Yaskawa/Fuji digabungkan dengan rel Taiwan Hiwin untuk pergerakan yang sangat stabil.

Mencari penyelesaian pemotongan logam tersuai?

Hubungi pasukan kejuruteraan kami hari ini untuk kajian kebolehlaksanaan teknikal dan senarai harga.

MINTA CADANGAN TEKNIKAL

Laser Cutting Samples

Machine Structure: Gantry or Desk Type

Fiber laser cutters are built in two basic ways. The structure decides how well the machine keeps its accuracy at high acceleration and under the heat of long cutting runs.

Gantry structure (PCL standard)

Rails apart from the cutting table: heat from the cutting zone goes into the table, not into the frame that carries the rails.
Dual drive: both sides of the gantry are driven, so it stays square at high acceleration.
Open sides: sheets can be loaded by forklift or crane from the side.
Service: worn table slats and parts are replaced without touching the rails.

Integrated desk structure

One welded body: table and rails sit on the same frame, which is compact and costs less.
Heat: cutting heat goes into the same frame that carries the rails, which matters more at high power and on long runs.
Loading: closed sides make loading large, heavy sheets slower.
Best for: lower power, smaller sheets and limited budgets.

At high power and high acceleration, the gantry structure keeps the precision parts away from the heat of cutting. That is why PCL builds its fiber laser cutters this way.

Machine Bed: Plate-Welded or Tube-Welded

The bed carries the gantry and takes every acceleration of the cutting head. How it is built decides how long the machine keeps its accuracy, especially above 3 kW and on heavy plate.

Plate-welded bed (PCL standard)

Thick steel plate: welded from 12–16 mm carbon steel plate; the mass damps vibration at high acceleration.
Stress relief: annealed at about 600 °C and cooled slowly in the furnace, so welding stresses do not distort the bed later.
Machined in one set-up: all mounting faces for rails and racks are milled on a large gantry milling machine in a single clamping, so they stay parallel.

Tube-welded bed (economy design)

Hollow square tube: lighter and cheaper, but more prone to vibration at high acceleration.
Thinner walls: more sensitive to heat and to the forces of heavy plate and fast moves.
Best for: low power and thin sheet, where loads are small.

When comparing quotations, ask how the bed is built, whether and how it is stress-relieved, and how the mounting faces are machined. These answers say more about long-term accuracy than the accuracy figure on the data sheet.
