Tank Fillet Welding Machine

Original price was: $1,000.00.Current price is: $900.00.

Magnetic fillet welding carriage for tanks from 1000 mm diameter and plates: 100–1500 mm/min, continuous or stitch welding, 15 kg, AC 110/220 V. USD 900.

  • CE / ISO 9001
  • 24-month warranty
  • FOB Qingdao
  • Remote & on-site support
Category:

Tank Fillet Welding Machine: Overview

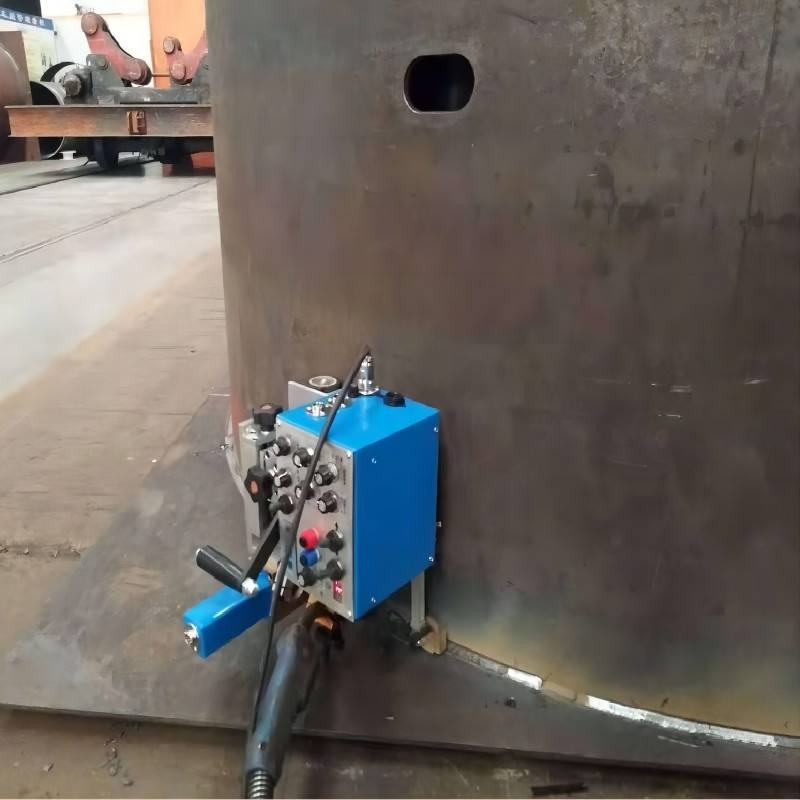

The tank fillet welding carriage holds the welding torch and travels along the seam on permanent magnets. It welds continuous or stitch fillet welds on tanks, bulkheads and long plates at a constant speed, so a welder supervises several metres of seam instead of welding it by hand.

USD 900FOB Qingdao
100–1500 mm/minstepless travel speed
15 kgcarriage weight
Ø1000 mm+tank diameter

Technical Specifications

Tank fillet welding carriage – standard data
Applicable diameter1000 mm and up (flat plate also)
Welding speed100–1500 mm/min, stepless
Torch adjustment50 mm vertical and horizontal
Welding modesContinuous or stitch (intermittent)
Input voltageAC 110 V / 220 V, 50/60 Hz
Carriage weight15 kg
PriceUSD 900 FOB Qingdao

How It Works

  • Permanent magnets and a guide unit hold the carriage on the plate and keep it on the seam line.
  • The magnet handle adjusts the holding force.
  • Speed, stitch length and end position are set and shown on the digital display.
  • Limit switches at both ends stop the carriage; it welds in both directions.
  • Between stitches it travels at full speed to save time.

Typical Work

  • Storage tanks.
  • Ship bulkheads and stiffeners.
  • Long fillet welds on plates and girders.
  • Steel flanges and construction steel.

For automated welding of large structures with seam tracking, see our welding robots.

Tank Fillet Welder FAQ

What tanks can it weld?

Tanks from 1000 mm diameter upwards, and flat plates.

Can it weld stitch welds?

Yes. It welds continuous or stitch fillet welds, with the stitch length set on the display.

Which welding machine do I need?

The carriage carries and moves the torch of your welding power source; a wire-feed (MIG/MAG) source is typical. Tell us your torch type and we confirm the clamp.

How much does it cost?

USD 900 FOB Qingdao.

Compare all machines on offer side by side in our selection guide.

Ask for availability. We confirm voltage and freight to your port.
