Quick Specifications
Effective Cutting Length: 6,000mm / 12,000mm (Optional)
Plasma Cutting: Up to 30mm
Flame Cutting: Up to 100mm
Power Source: LGK / Hypertherm (Optional)
* Customizable configurations available for large-scale structural steel projects.
8-Axis Multi-Profile Precision Cutting System

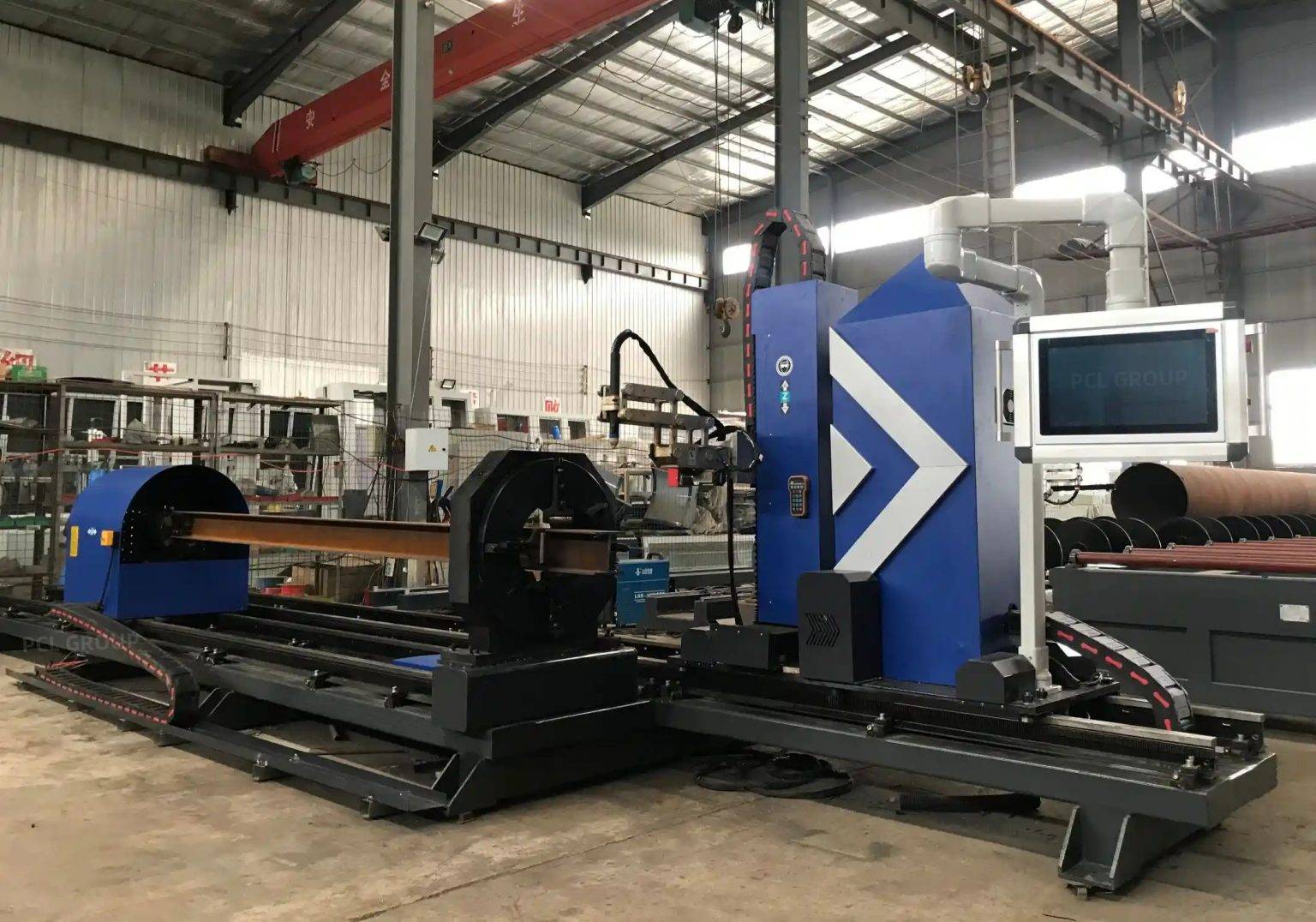

The PCL 8-Axis Series represents the pinnacle of 3D profile cutting technology. It is expertly engineered to handle a vast range of industrial shapes including Round Pipes, Square Tubes, Rectangular Tubes, Channel Steel (U-beam), and Structural I/H-beams with absolute precision.
Profile Processing Capability
- •
Tubular Shapes: Efficient high-speed processing for Round, Square, and Rectangular tubes. - •
Structural Sections: Precision 3D profiling for Channel Steel (U-beam), Angle Iron, and I/H-beams. - •
8-Axis Synchronization: Enables complex beveling on both the flange and web of irregular structural sections.
| Profile Category | Technical Highlights |
|---|---|
| Round & Square Tubes | Diameter up to 800mm / 600mm Square |
| Channel Steel / U-Beam | Intelligent profile tracking & 3D beveling |
| H-Beam & I-Beam | Synchronized multi-axis web & flange cutting |
| Bevel Precision | ±60° Space linkage angle compensation |
Seeking a custom solution for your structural steel projects?
PCL GROUP Intelligent Equipment CO.,LTD
The Power of Integration: 2-in-1 Cutting System
Why limit your production? Our integrated Plasma & Oxy-Fuel system provides a versatile solution for large-diameter pipe fabrication, handling everything from thin-wall stainless to heavy structural carbon steel.
Full-Thickness Spectrum
Eliminate material limitations. Utilize high-speed Plasma for precision on thin-to-medium walls (up to 25mm), and utilize Oxy-Fuel for massive carbon steel pipes up to 100mm+. One machine, zero compromises.
Seamless Workflow
Stop moving heavy pipes between different workstations. Perform precision cutting and complex intersection profiling on the same workpiece. This significantly reduces material handling time, labor costs, and potential for damage.
Maximized ROI & Space
Shared Heavy-Duty Gantry and CNC Control infrastructure means you save up to 40% in floor space compared to owning two machines. Lower your initial capital investment while doubling your shop's project-handling capability.
Independent Dual-Torch Configuration
Our machine features an independent mounting system for both Plasma and Oxy-fuel torches. This hardware-ready design ensures that the right tool is always available for the job. Supported by a high-precision rotary drive, it delivers consistent accuracy across all material types and pipe diameters.
Frequently Asked Questions (FAQ)
Q1: What is the maximum metal thickness the Laser machine can cut?
The cutting capacity depends on the laser power source. For example, a 3kW source can cut up to 20mm Carbon Steel and 10mm Stainless Steel. With 12kW, you can cut up to 40-50mm Carbon Steel. We will recommend the optimal power based on your specific needs.
Q2: Why is the Plate-Welded bed better than a Tube-Welded bed?
Plate-welded beds provide much higher rigidity and weight (4.5 tons+ for the 2060), which is essential for absorbing vibrations during high-speed acceleration. It prevents deformation over time, ensuring the machine maintains ±0.03mm accuracy for over 20 years.
Q3: What CNC software does the machine use? Is it easy to learn?
We use the industry-standard CNC control system. It is highly intuitive and supports DXF, AI, and PLT files. Most operators can master the basic cutting process within 2 days of our online or on-site training.
Q4: How long is the delivery time and warranty?
Standard production time is 20-30 working days. We provide a 24-month warranty on the entire machine (excluding consumables) and lifetime technical remote support.
Q5: Do you provide on-site installation and training?
Yes! We have a global team of engineers. We offer detailed installation videos and manuals, and we can also dispatch engineers to your facility for setup and comprehensive staff training.
Have more questions? Contact our engineering team directly →
