The LT120S tube laser cutting machine is engineered for precision and efficiency, offering high-performance cutting capabilities for various tubular materials. With advanced laser technology, it ensures clean, accurate cuts while accommodating a wide range of tube sizes and shapes. Designed for seamless integration into manufacturing processes, the LT120S enhances productivity and delivers exceptional results, making it an ideal solution for businesses seeking to elevate their fabrication capabilities.

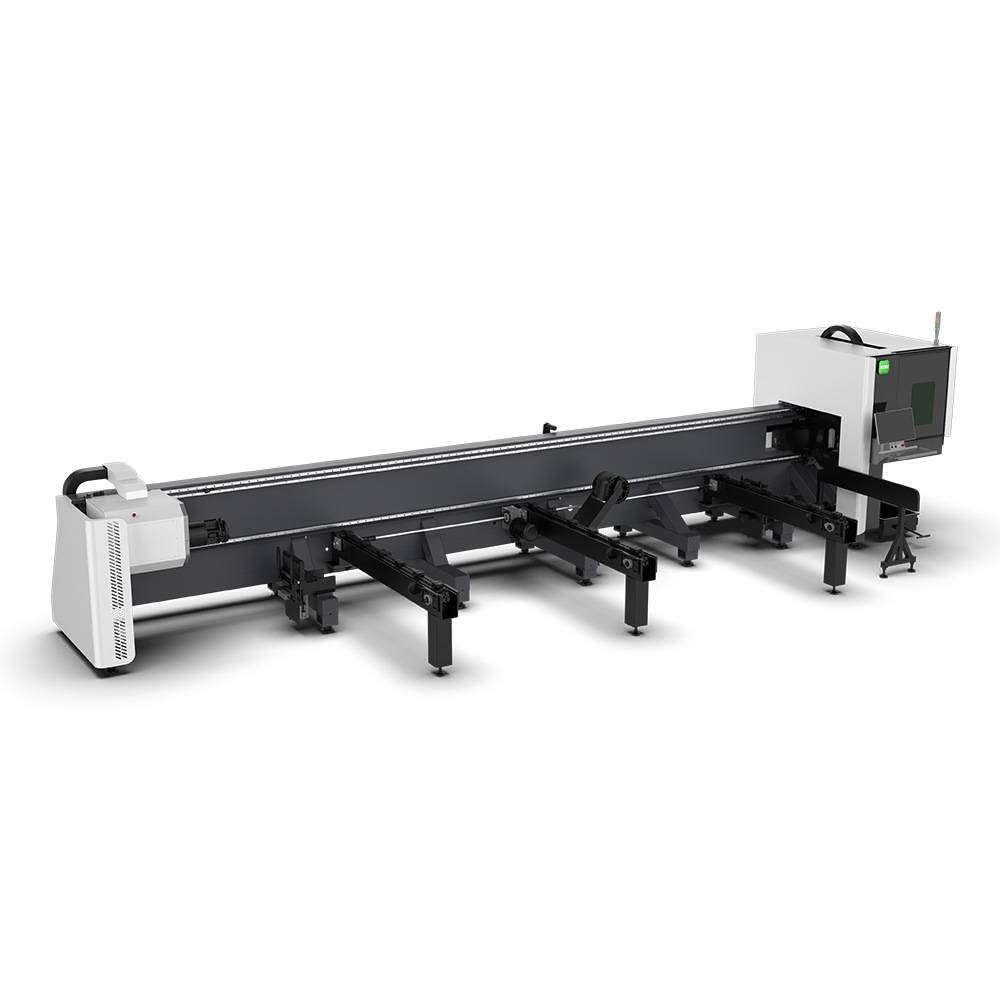

LT120S Side-Mounted High-Speed Tube Laser Machine
Why Choose LT120S Side-Mounted Architecture?
The LT120S utilizes a unique side-mounted bed design, specifically engineered for fabricators who handle heavy-walled pipes (up to 10mm) but require the speed of a compact machine.
- ✓
Rapid Loading Speed: The open-side structure allows for direct forklift access. This eliminates the need for complex end-loading, making it 40% faster to load 160kg+ heavy tubes. - ✓
Maintenance-Free Precision: Unlike horizontal beds, cutting slag and sparks fall vertically to the floor. Your guide rails and racks stay clean, drastically reducing wear and ensuring ±0.03mm accuracy over time. - ✓
Superior Space Efficiency: The compact side-mount footprint is ideal for workshops looking to maximize production capacity without expanding their floor area.
Zero-Tailings & High-Precision Clamping
Maximize material ROI with the LT120S dual-chuck synchronization system, designed to minimize waste and handle high-inertia rotations.
Ultra-Short Tailings
Our synchronized dual-chuck system pushes the cutting head to its physical limit, significantly reducing scrap on every pipe.
Pneumatic Precision
Equipped with full-stroke pneumatic chucks that provide constant, high-pressure clamping—essential for spinning 160kg pipes without slippage.
Technical Specifications
| Model Parameter | LT120S (Standard / Side-Mount) |
| Max Pipe Diameter | Round: φ120mm | Square: □120*120mm |
| Wall Thickness Capability | Carbon Steel up to 10mm |
| Laser Source | 1.5kW – 3.0kW Fiber |
| Positioning Accuracy | ±0.03 mm |
| Max Pipe Weight | 180 kg (Single Pipe) |
Looking for Heavy-Duty Performance?
The LT120S is the perfect blend of speed and power. Contact us for a specialized quote today.
PCL GROUP Intelligent Equipment CO.,LTD
Advanced Fiber Laser Tube Processing Technology
Our CNC Fiber Laser Tube Cutting systems revolutionize metal fabrication by integrating high-precision cutting, punching, and profiling into a single automated workflow. Designed for versatility, this technology handles a wide array of profiles including Round, Square, Rectangular, and Oval tubes, as well as complex L-shaped and U-shaped channels.
- Precision Punching: High-speed hole punching with micron-level accuracy, eliminating the need for mechanical drilling or die-stamping.
- Complex Profiling: Advanced 3D pathing allows for intricate interlocking joints and specialized notch cuts, ideal for structural frames.
- High Material Efficiency: Intelligent nesting software minimizes scrap, reducing raw material costs across large production runs.
- Clean Finish: Delivers oxide-free, burr-free edges that require zero secondary grinding before welding.
Seamlessly processing multiple profiles with consistent precision.
Global Delivery & Logistics
From our high-tech manufacturing facility directly to your global site. PCL WeldCut ensures secure packaging, professional handling, and reliable international logistics to safeguard your equipment throughout the entire journey.
Watch Related Videos
Tube & Profile Processing FAQ
Our advanced CNC system is optimized for a wide range of industrial profiles, including H-beams, I-beams, C-channels, Angle steel, and Square/Rectangular tubes. The software automatically compensates for structural variations to ensure precision on every face.
Yes. Unlike traditional mechanical punching, our fiber laser technology allows for unlimited geometric freedom. You can program complex interlocking joints, decorative patterns, or high-density ventilation holes with zero tool wear and consistent micron-level accuracy.
Cutting performance depends on the selected laser power (1.5kW - 6kW). Our systems feature Auto-Focusing heads that maintain the optimal focal point throughout the cutting process, ensuring clean, dross-free results even when transitioning between different wall thicknesses on H-beams or channels.
One of the primary advantages of our system is the ready-to-weld finish. The high-quality fiber beam produces a smooth, oxide-free edge. For most industrial applications, parts can move directly from the laser machine to the welding station, significantly reducing labor costs.
Every PCL system includes professional 3D nesting software for optimized material usage. We provide comprehensive technical support, including remote programming assistance and detailed video tutorials to ensure your team is proficient within days.
