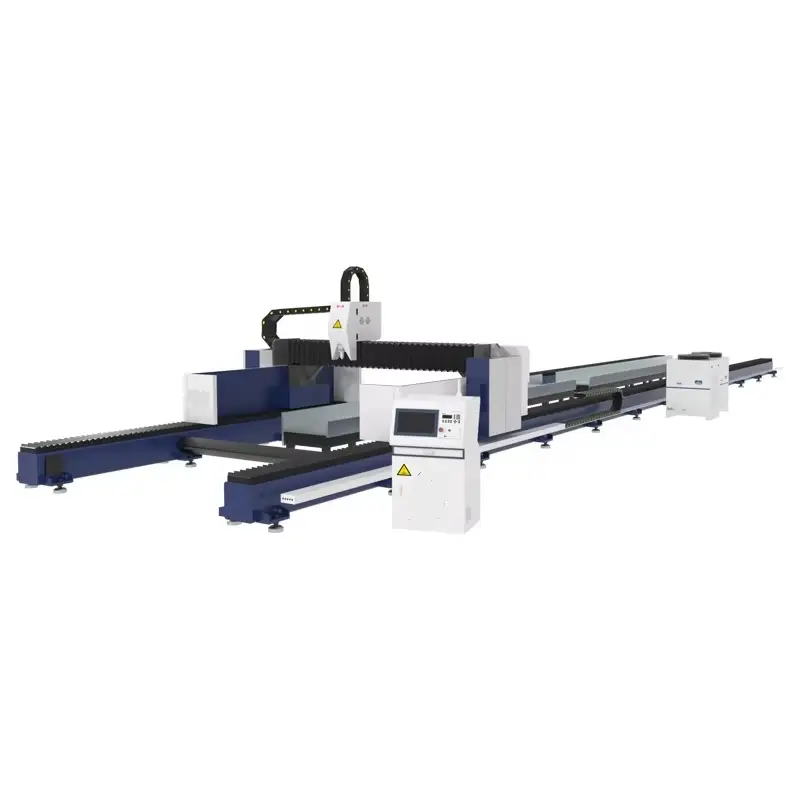

The HF H Beam Laser Cutting Machine is engineered for precision and efficiency, offering advanced laser technology for cutting H beams with exceptional accuracy. Designed to meet the demands of various industrial applications, this machine ensures high-quality cuts while optimizing production speed and reducing material waste. Its user-friendly interface and robust construction make it an indispensable asset for manufacturers seeking to enhance their cutting capabilities and streamline operations.

WhatsApp Us Email Quote

PCL Smart Fabrication

HF SERIES: H-BEAM SECONDARY
PROCESSING LINE

A complete automated workflow: Integrated Marking, Drilling, and Precision Cutting. One-stop processing for raw structural steel into ready-to-weld components.

All-In-One Fabrication

Consolidate your workshop operations. The HF series automates three critical steps in a single cycle to maximize efficiency:

AUTOMATED MARKING
Part coding & tracking.
LASER DRILLING
Precision bolt holes.
PROFILING CUTS
Complex bevels & locks.
NO GRINDING
Burr-free finish.

READY-TO-WELD RESULTS

Traditional H-beam cutting leaves heavy dross and rough edges. Our laser secondary processing line delivers a smooth, dross-free section every time. Zero manual grinding is required, allowing parts to move directly to welding and assembly, cutting labor costs by over 60%.

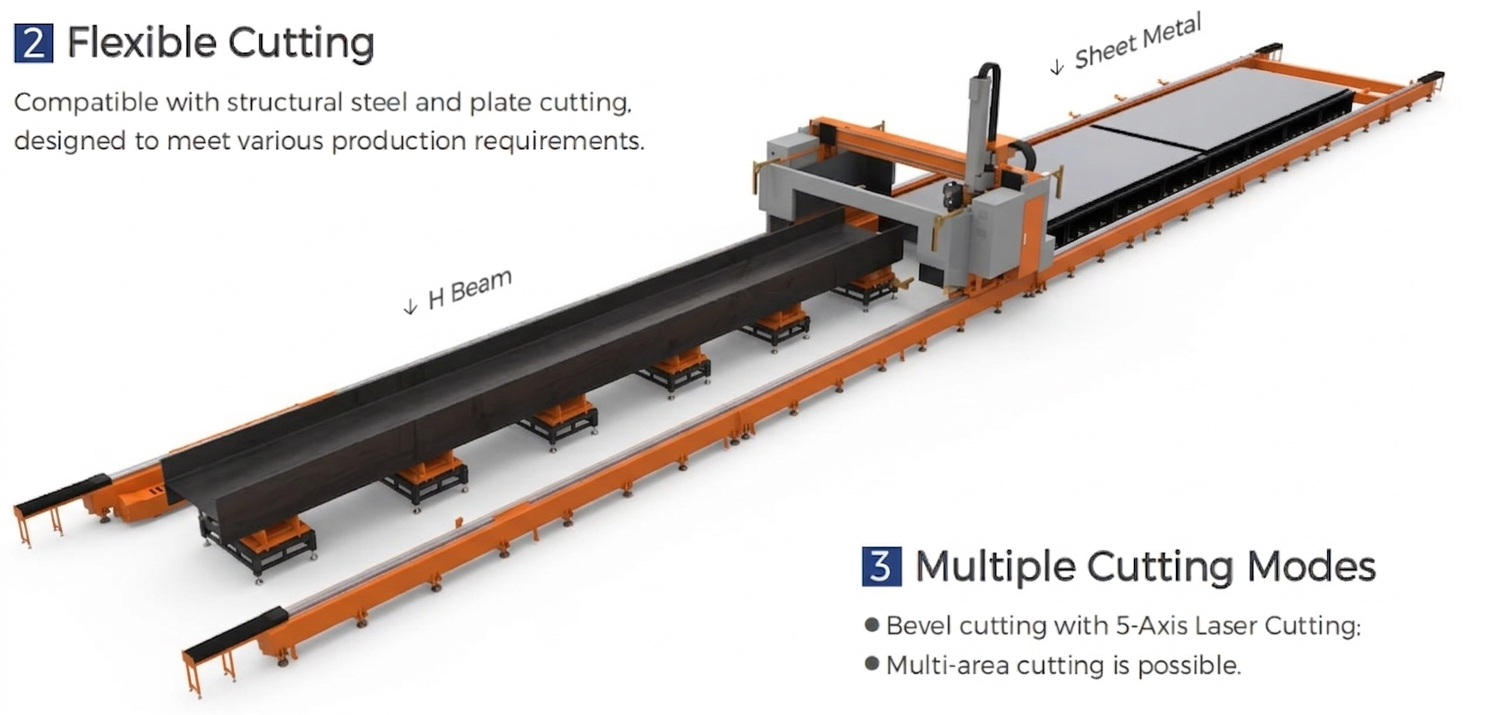

Hybrid Processing Capabilities

Flat Plate Cutting

Fully compatible with standard metal plate cutting. A dual-purpose asset for both structural steel and sheet metal tasks.

Optional Tube System

Expand your scope. Optional rotary system upgrade available for high-speed processing of round, square, and rectangular tubes.

H-Beam Range 100mm – 800mm Processing Type Secondary Processing Line
Functions Marking / Drilling / Cutting Finish Quality Burr-Free (No Grinding)
Laser Power 12kW – 30kW Optional Capacity H-Beam / Plate / Tube (Opt.)

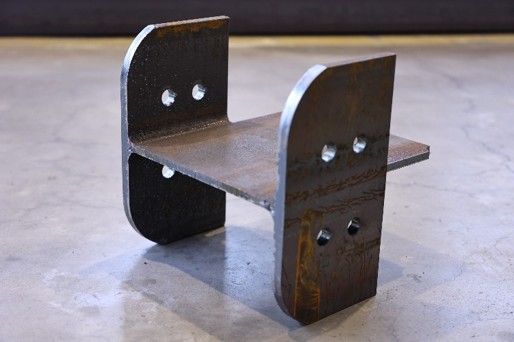

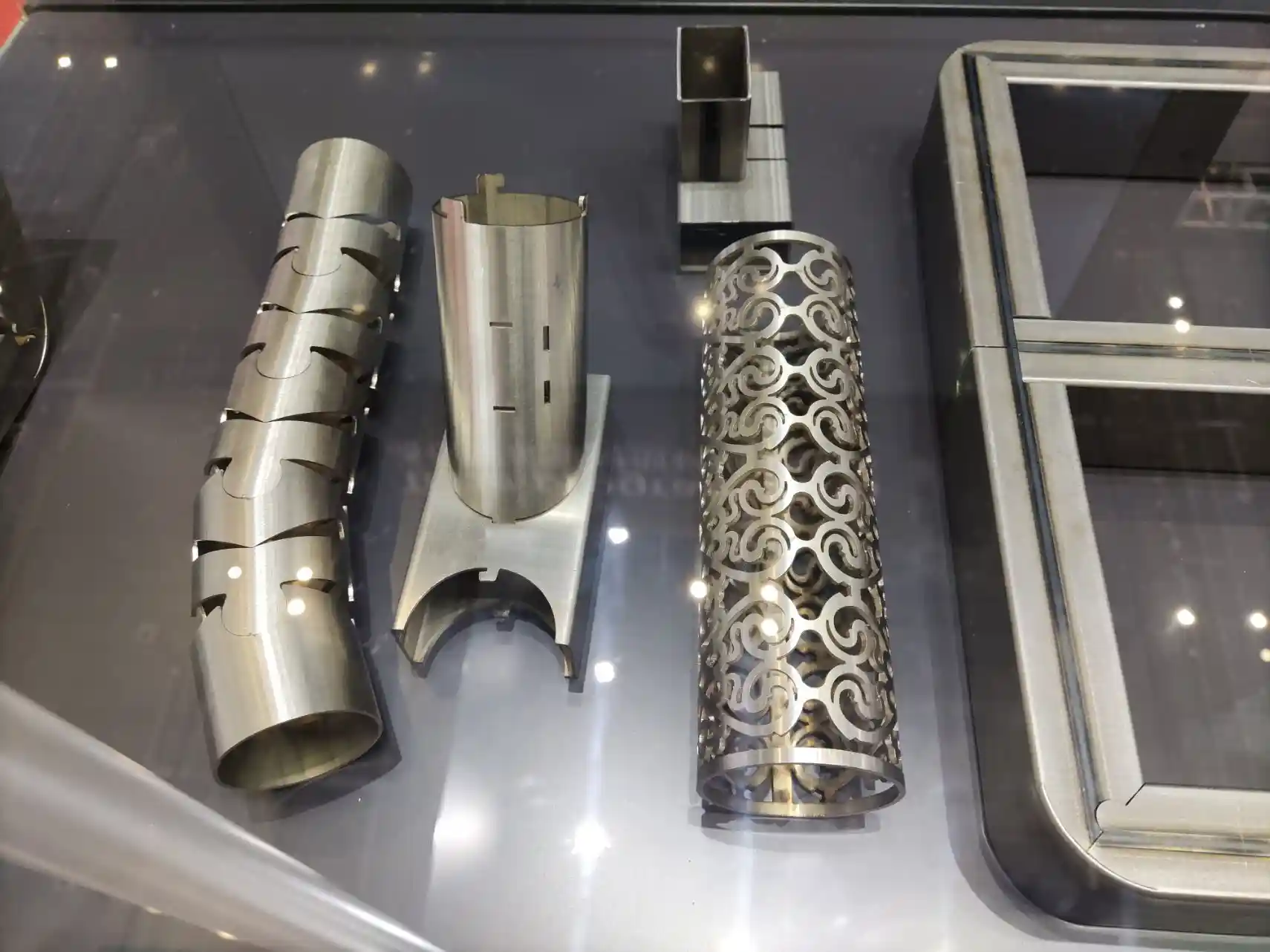

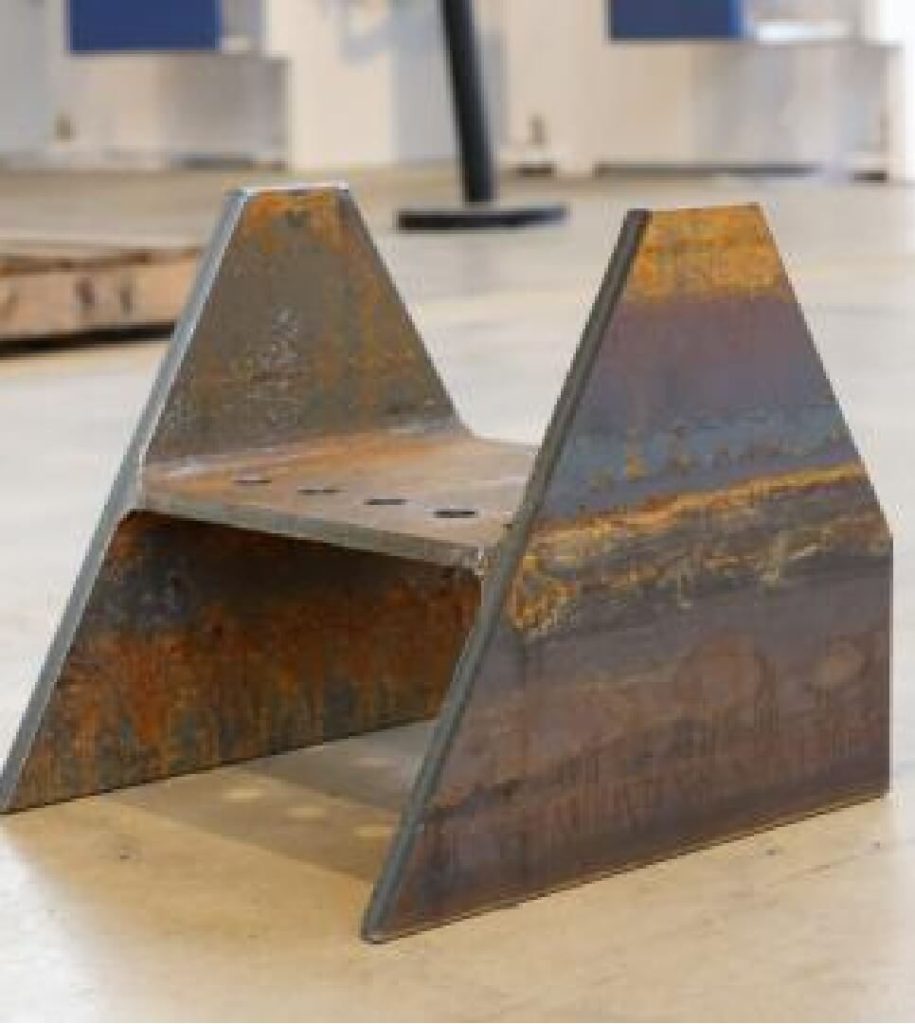

laser cutting samples

metal laser cutting samples

PCL GROUP Intelligent Equipment CO.,LTD

call now
require now
ISO/CE
15+ Years Export
Global Tech Support

Machine Architecture: Gantry vs. Desk Structure

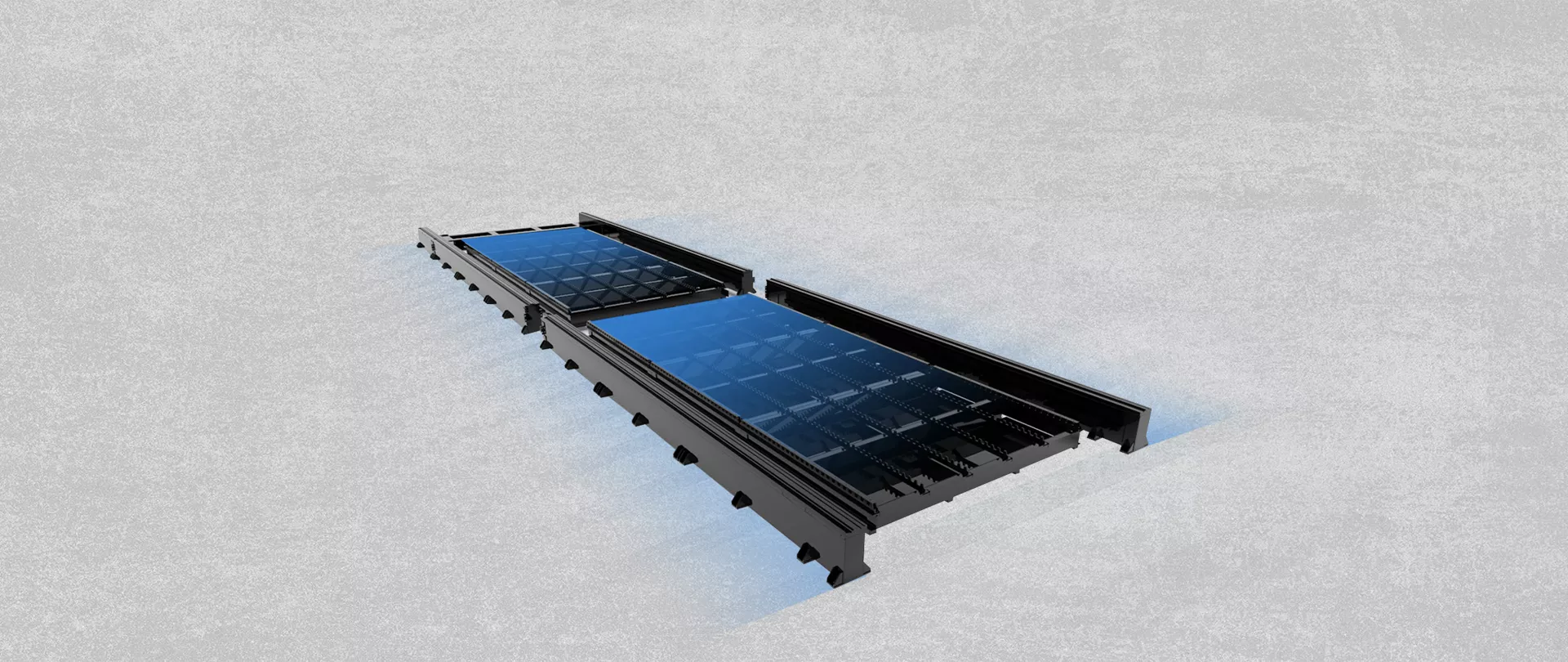

PCL Industrial Gantry Structure with Ground Rails
PCL PRO STANDARD

Heavy-Duty Gantry Structure

  • Dual-Drive Stability: Independent rails ensure 1.2G acceleration without vibration.
  • Separated Design: Bed and rails are independent, preventing thermal distortion.
  • Infinite Durability: Maintains ±0.03mm precision for 10+ years of 24/7 operation.
  • Unrestricted Loading: Side-open design for fast and safe plate loading.

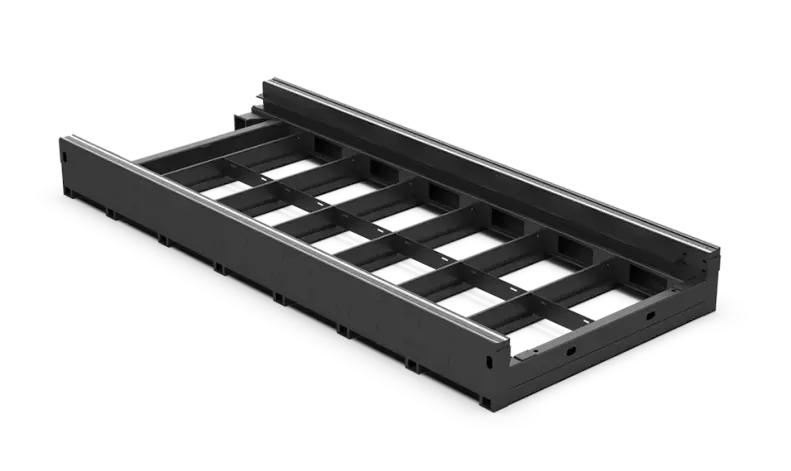

Standard Integrated Desk Structure
TRADITIONAL DESIGN

Integrated Desk Structure

  • Vibration Sensitive: Lightweight frame limits the max cutting speed and precision.
  • Heat Absorption: Integrated frame warps easily due to laser heat accumulation.
  • Restricted Space: Box-style sides make loading heavy 3m plates difficult.
  • Difficult Repair: Any structural warping requires a complete machine overhaul.
Industrial Insight: Choosing a Gantry Structure like the GF3012 is essential for high-power fiber laser processing. It provides the mechanical stiffness required for high-speed dynamic movements while isolating the precision components from the heat of the cutting process.

Related products

Watch Related Videos

Technical FAQ

Q1: What is the cutting capacity of high-power fiber lasers (12kW - 30kW)? +
With the rapid advancement of fiber technology, high-power sources provide massive cutting depth. A 12kW source can cleanly cut up to 30mm carbon steel; a 20kW system handles up to 40mm-60mm stainless steel/carbon steel; and our 30kW ultra-high power solution can process plates up to 100mm with high efficiency, making it a perfect replacement for traditional plasma cutting in heavy industries.
Q2: Why is the Gantry Structure better than an Integrated Bed? +
An Industrial Gantry Structure separates the movement rails from the loading bed. This prevents thermal deformation caused by intense laser heat from affecting the machine's precision rails. This isolation ensures long-term 24/7 stability and maintains ±0.03mm positioning accuracy for years of heavy-duty operation.
Q3: How does the auto-focus cutting head benefit my production? +
Auto-focus technology allows the machine to automatically adjust the focal point for different material thicknesses. This reduces manual setup time by 80%, speeds up the piercing process, and ensures a cleaner cut on thick plates compared to manual-focus heads, significantly lowering the risk of operator error.
Q4: Is the system compatible with common CAD/CAM software? +
Yes, our machines use the industry-standard Cypcut CNC Control System. It supports direct import of DXF, AI, PLT, and LXD formats. This allows for seamless integration with files from AutoCAD, CorelDRAW, and other professional nesting software for immediate production.
Q5: What kind of after-sales support does PCL provide? +
We offer a 2-year warranty on the laser source and provide comprehensive lifetime technical support. Our global service team provides remote diagnosis, video training, and on-site support if required, ensuring your fabrication line stays operational with maximum uptime.
