The tube and plate laser cutting machine is a high-precision industrial tool designed for efficient cutting of various materials, including metals and plastics. Featuring advanced laser technology, this machine ensures clean, intricate cuts with minimal heat distortion, making it ideal for complex designs and high-volume production. Equipped with user-friendly controls and robust safety features, it provides an optimal solution for manufacturers seeking to enhance their operational efficiency and product quality.

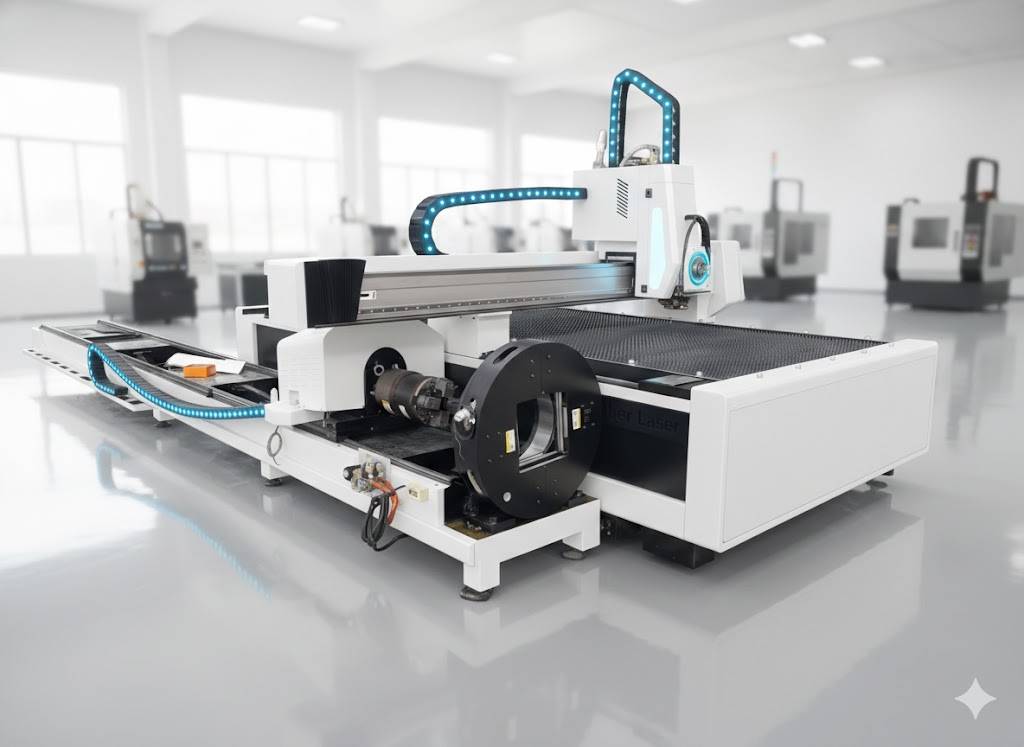

Industrial 2-in-1 Fiber Laser Cutting Machine
Integrated Solution for Sheet Plate & Metal Pipe Fabrication

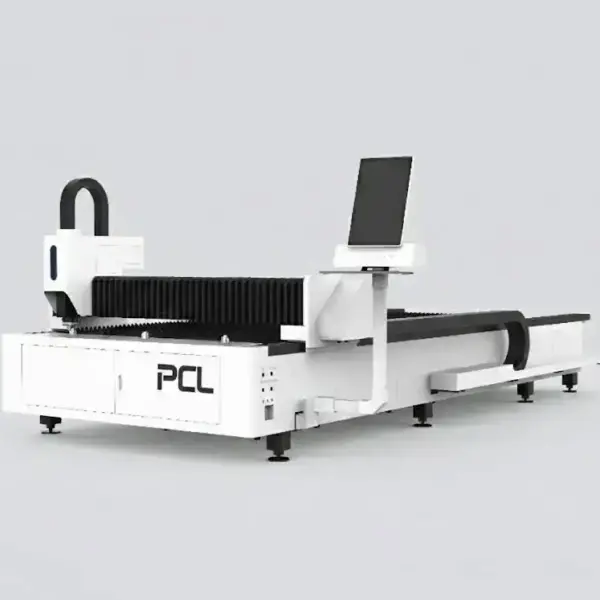

Precision Plate Cutting
Heavy-duty gantry and bed structure designed for rapid processing of Carbon Steel, Stainless Steel, and Aluminum sheets with high dynamic accuracy.
High-Speed Pipe Cutting
Equipped with a professional pneumatic chuck system. Effortlessly process Round, Square, Rectangular pipes and Oval tubes without changing machines.
Why Choose the 2-in-1 Integrated System?
The PCL 2-in-1 Series is the perfect choice for fabrication shops with limited floor space or those looking to expand their service capabilities without investing in two separate machines. By integrating a dedicated rotary axis onto the side of the flatbed laser, you gain the ability to switch between sheet metal nesting and pipe intersection cutting in minutes.
This dual-functionality doesn’t compromise on performance. Powered by world-class fiber laser sources (up to 12kW) and precision rack-and-pinion drives, it delivers the same industrial-grade speed and reliability as standalone units, but with a significantly lower Total Cost of Ownership (TCO).
Technical Specifications
| Flatbed Area | 3000x1500mm / 4000x2000mm (Optional) |
| Pipe Processing | Diameter 20-220mm | Length 6000mm |
| Laser Source | Fiber Laser 1kW – 12kW (Raycus/IPG) |
| Positioning Accuracy | ±0.03 mm |
| Max Acceleration | 1.0G – 1.2G |

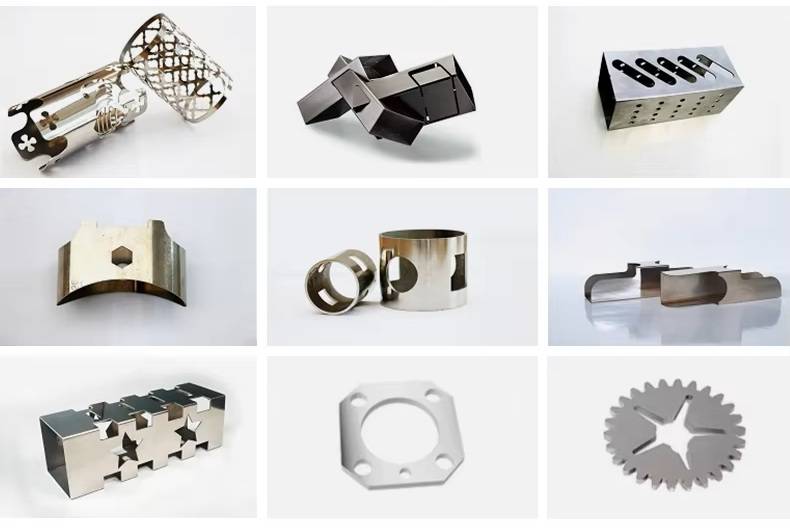

Cutting samples
High-Performance- Fiber Laser cutting System
Advantages of Fiber Laser Cutting
Fiber laser technology has revolutionized metal fabrication with higher absorption rates and precision:
Maximum Cutting Thickness Reference
| Power Source | Carbon Steel (O2) | Stainless Steel (N2) | Aluminum (Air/N2) |
|---|---|---|---|
| 1.5 kW | 14 - 16 mm | 5 - 6 mm | 4 - 5 mm |
| 2.0 kW | 16 - 18 mm | 8 mm | 6 mm |
| 3.0 kW | 20 mm | 10 - 12 mm | 8 - 10 mm |
| 4.0 kW | 22 - 25 mm | 14 mm | 12 mm |
| 6.0 kW | 25 - 28 mm | 18 - 20 mm | 16 mm |
| 12.0 kW | 40 - 50 mm | 30 - 40 mm | 25 - 30 mm |
* Performance varies based on gas purity and material grade.
